addac system
addac207 intuitive quantizer

price : $450.00

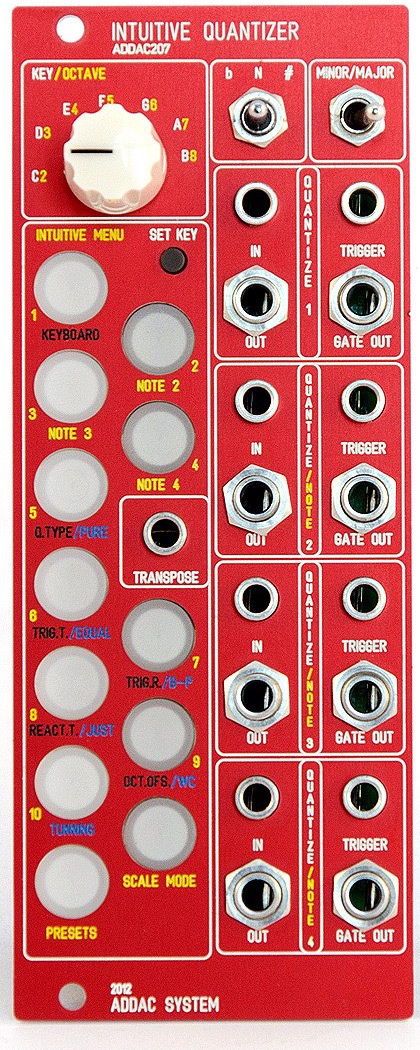

ADDAC207 Intuitive Quantizer

features:
4 voices of quantization with 10 octaves range
keyboard mode (using buttons as triggers)
user definable scales: any scale is possible.
simple intuitive menu with settings such as:
user definable notes intervals for chord generation
quantization types: above, below, ignore
definable gate out length
octave offsets

menu reaction time can be adjusted and saved.
assignable cv input for menu functions
5 different scale temperaments including bohlen-pierce
microtonal options for more than 12 notes per octave
transpose through cv input
compatible with both moog and buchla standards
independent voice fine tunning
tunning reset to 1v/peroctave
tunning settings safely stored in non-volatile memory.
11 user presets for easy recalling user's favorite scales and settings.

specifications:
mechanical:
format: eurorack
width: 10 hp
depth: 5.2 cm

control voltage i/o:
cv inputs: ± 5v
cv outputs: +10v
electrical:
max current: 150ma
bus board cable: 8 × 2 idc (doepfer style) connector

download the users guide here.
