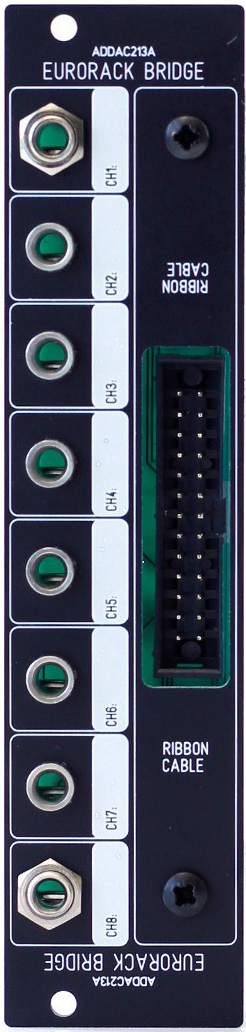

addac system addac213a eurorack bridge
price : $130.00
|
|
the first modules from our eurorack bridge system!
a pair of addac213as acts as a simple one-cable bridge between different cases. by itself the addac213as can send/receive 8 cv or audio signals between your cases, but can be expanded to bridge two cases for
up to 24 signals at the same time.
use a pair of addac213as to send & receive 8 cv or audio signals between distant points in your case, between two separate cases, or between your case and a friend's case. less clatter, less spaghetti, faster
connection! there's nothing better than being able to connect that controller skiff with just one cable to your main system. at a gig, in the studio, when jamming with a friend, give yourself a gift by
grabbing a pair of addac213as. the modules can be installed in normal position or a 180 degree position to fit any need and any case design.
expansion by the addac213bs
each addac213a module can be connected through a ribbon cable connection on its backside with up to two addac213bs. each addac213b module added expands the channels options of the addac213a by adding 8 more
channels. with two 2 addac213bs connected to each addac213a module, you'll have a total of 24 channels going between your cases with a simple one-cable bridge. between the addac213a pair and the addac213b,
your cases never looked so elegantly connected together!
the addac213as are always sold as a pair of 2 modules and an included ribbon cable (50cm or 100cm ribbon cable, or custom sizes available upon request).
each module can be installed in normal position or at 180 degrees.
mechanical:
format: eurorack
width: 6 hp
depth: 2.4 cm
electrical:
passive / does not draw current
ribbon cable: 50cm or 100cm ribbon cable
|
