addac222 4x6 voices 1v/octave to midi notes

price : $450.00

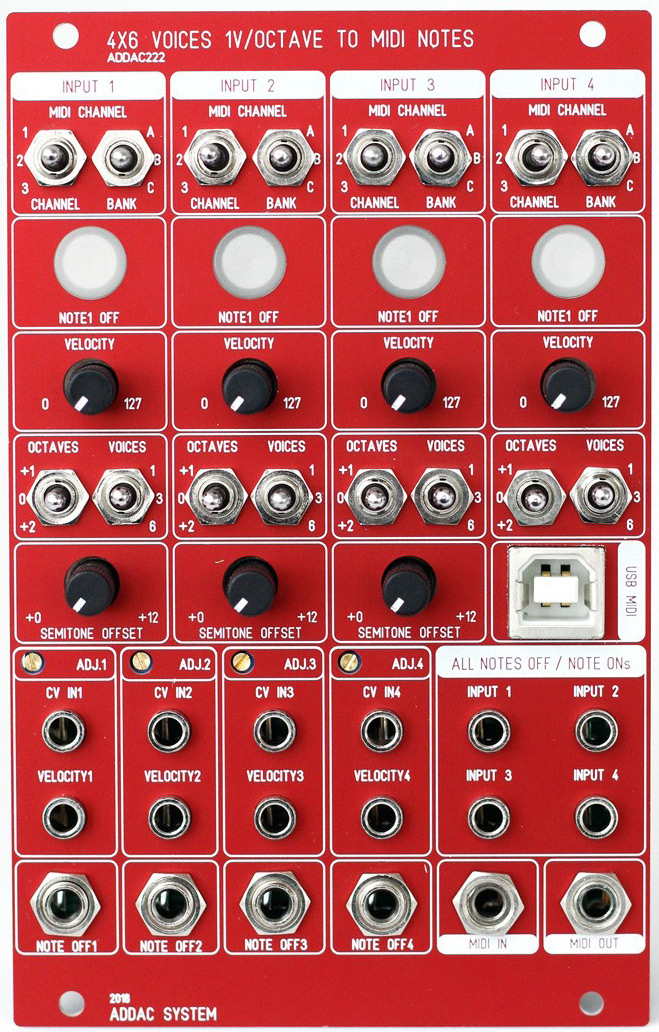

ADDAC222 4x6 Voices 1V/Octave to MIDI Notes

most recent from the addac midi series, the 222 converts 4 cv inputs to four distinct polyphonic midi notes streams, with up to 6 note voices per input. this allows the user to send midi notes to external midi devices straight from your modular: just plug it into your classic synth or your favourite virtual instruments. combined with the addac221 you can fully control any external midi device.

features:
the user can send midi notes to 9 different midi channels (3 banks with 3 midi channels each). so, any of the 4 cv inputs may independently send its data to one of these 9 midi channels.
note offs may be sent by pressing the notexoff button or as soon as a trigger is received in the note offx cv input.
a trigger sent to the all notes off cv input (1-4) will remove all the notes at the respective midi input.
the octaves switch (one per input) transposes the notes from +1 to +2 octaves, a rate that can be extended by one more octave using the c1-c2 offset knob.
the adj.x trimmer calibrates the amount of voltage per octave to compensate a possible deviation in the cv in received signal.
usb midi received data will be routed to the midi out jack.
in turn, midi data externally sent to the midi in jack will be routed both to the midi out jack and the usb midi port.

ships with 2 stereo jack to din5 midi cables.

faq:
the note off function puzzles me a bit anyway. am i wrong if i see it as a sort of « midi gate effect » allowing to cut the midi flow with a sequence of gates?

midi notes have 2 separate messages: when you press a key on a midi keyboard, there's a note on message that includes the note (ex. c2, e5...) and the velocity or how hard you pressed the key. when you release the keyboard key there's a second message: note off, that simply cancels the previous note. this note on/off combination tells the synth to play this or that note and for how long. the module detects incoming cv and translates it, using the 1v/oct standard, to midi notes within a 5 octave range. this can be done in a free flow mode so that it sends a new note every time it detects a cv change on or it can work more like a sample and hold function, triggering new notes only when it receives a note on in this case coming from an external trigger input. if any note is being played note off will cancel the last midi note triggered. in 3 and 6 voice mode it will trigger the last note and if you keep sending triggers to it, and assuming no new notes are coming in, it will cancel the one before the last and the one before that one and so on until it clears every note active. if in 1 voice mode it will always cancel the currently active note. for example, in a sequencer setup you can use a gate delay to cancel the note being played, so that the sequencer cv out would trigger a new note at every step and the sequencer gate can be sent to a gate delay that would then trigger the note off, with a short delay time you can get staccato type playing.

when you set one channel on "3 voices", does it agregate three notes comming into the input to make a triad, firing at the last note for example? i don't fully understand the voices allocation when the channel is set to more than one note...

the voices operate in an old school synth fashion, in wrap-around mode. for ex. imagine you're sending a cv signal from a sequencer every time the sequencer goes to a new step you'll hear a new note being played. if you set it to 1 voice, then every time a new note comes in from the sequencer the midi output plays the new note and cancels the previous note. in 3 voice mode the module will output the first note on the first cv change, a second note on the second cv change, a third note on the third cv change. by now all 3 notes will be heard. once the fourth cv change comes in the module will cancel the first note and change it to the fourth cv input value, then the fifth cv change will replace the second note and so on and on... this will be the same method as for 6 voices but the wrap-around will happen after 6 cv changes allowing 6 notes to be heard at the same time. the 3 and 6 voices modes will only work with polyphonic midi devices.
