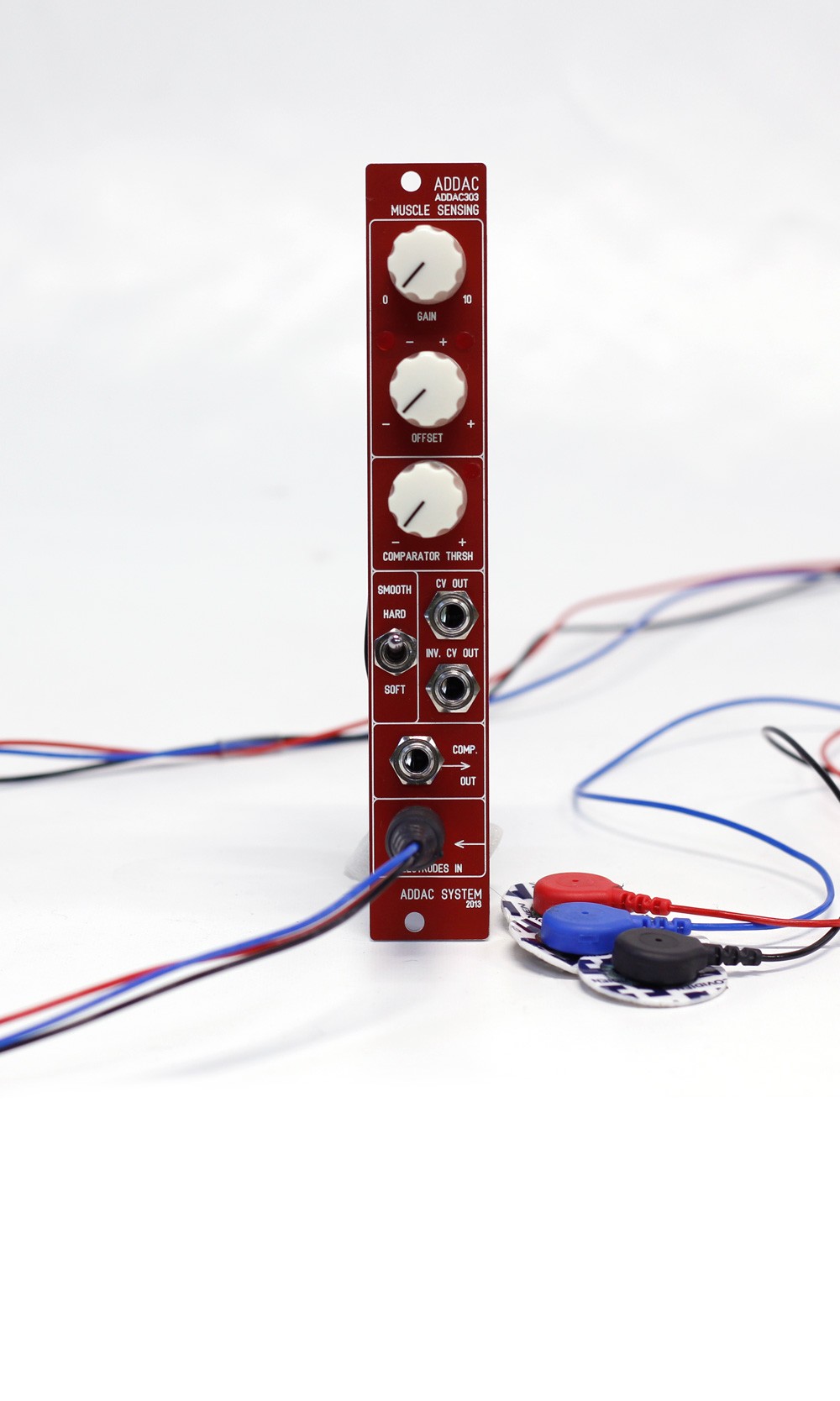

addac system addac303 muscle sensing price : $225.00

this module introduces a totally new interaction principle for the eurorack format, using electrodes to sense body muscles tension. you can stick them to your arm and clench your fist, to your leg and tap your tempo, to your band bass player or drummer... you name it.

features:
gain knob adjusts the output's voltage range (±10v)
offset adjusts initial range position (±10v)
smooth switch allows hard and soft smoothing of the raw sensor output.
positive and inverted cv outputs
comparator gate out with threshold knob
module ships with electrodes.
pads are reusable and replaceable.

specifications:
width: 4 hp
depth: 4 cm
max current: 60ma
bus board cable: 8 × 2 idc (doepfer style) connector
