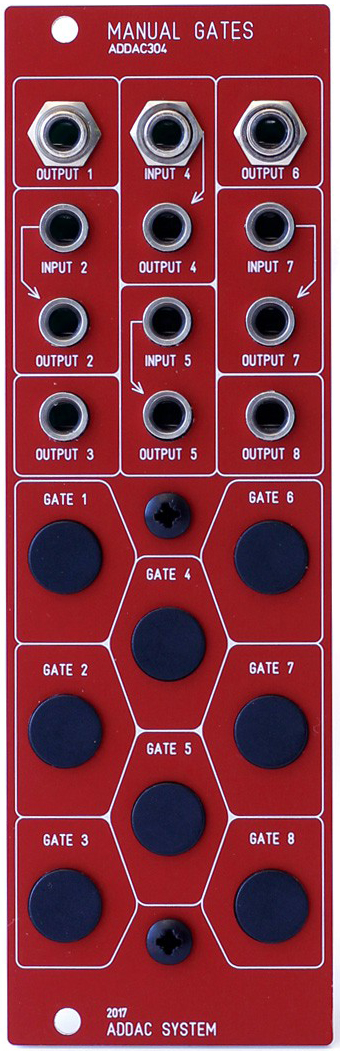

addac system addac304 manual gates: red
price : $110.00
|
![ADDAC304 Manual Gates: Red ADDAC304 Manual Gates: Red](addac304s.jpg)
|

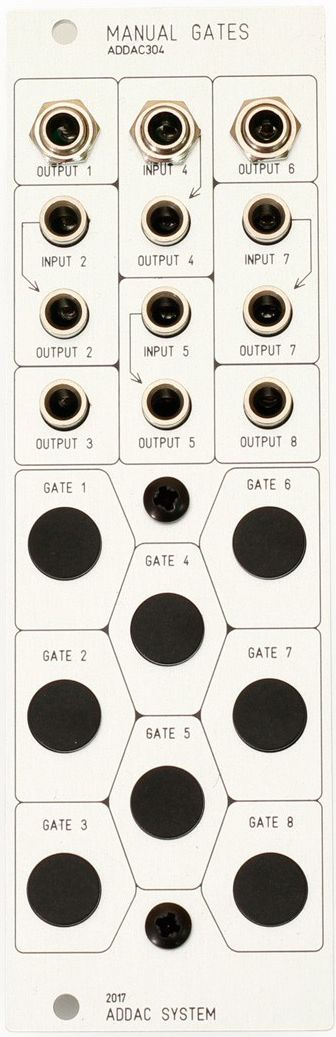

addac304 manual gates: silver
price : $110.00
|
![ADDAC304 Manual Gates: Silver ADDAC304 Manual Gates: Silver](silvers.jpg)
|
with the addac304 manual gates you'll be getting 8 manual gates (0 +5v) in a nifty package - a perfect way to perform on and control your modular system.
the addac304 comes with an interesting twist: 4 out of the 8 available gates can act as momentary switches, outputting the signals in their respective inputs when each gate's button is pressed.
mechanical:
format: eurorack
width: 8 hp
depth: 2.5 cm
control voltage i/o:
cv inputs: ± 10v
gate outputs: 0 +5v
electrical:
max current: 10ma
bus board cable: 8 x 2 idc (doepfer style) connector
|
