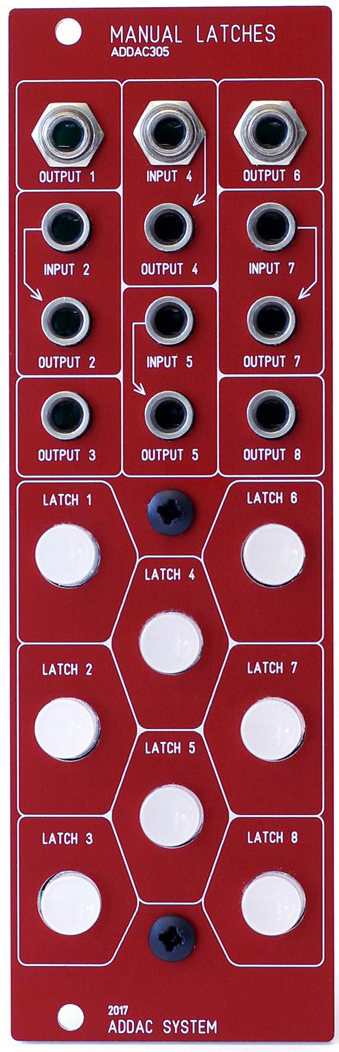

addac system addac305 manual latches: red front panel
price : $130.00
|
|

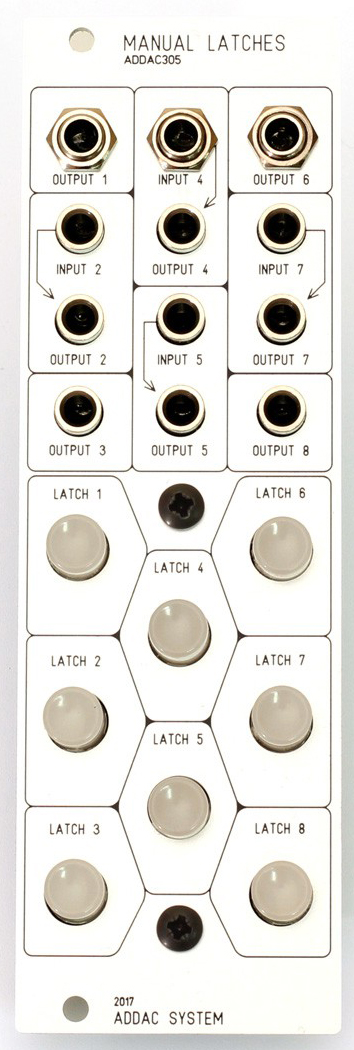

addac305 manual latches: silver front panel
price : $130.00
|
|
the addac305 manual latches is a combination of 8 manual latching switches in a small and elegant module: each button toggles between gate high / gate low when pressed, outputting a 5v gate signal.
additionally 4 of the 8 available latches, sport inputs and can act as manual latching switches, allowing the incoming signal to pass to the output when the button is toggled.
mechanical:
format: eurorack
width: 8 hp
depth: 2.5 cm
control voltage i/o:
cv inputs: ± 10v
gate outputs: 0 +5v
electrical:
max current: 10ma
bus board cable: 8 x 2 idc (doepfer style) connector
|
