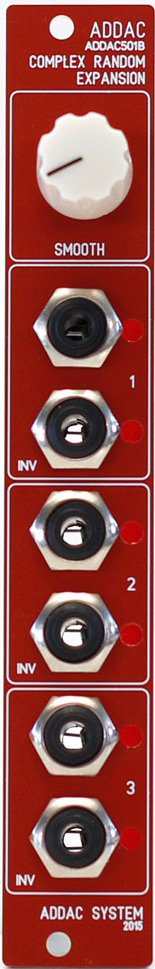

addac system addac501b complex random expansion price : $150.00

*this module does not connect to the bus board! being an expansion it connects straight into the addac501 complex random module.

4hp eurorack format

manual control: smooth / glide knob

outputs:
3 standard gate output, 1 per channel
3 inverted gate output, 1 per channel

electrical specs: outputs: 0+5v

±12 to ±15v
max current: 50ma
5×2 idc cable connects to addac501 only

mechanical specs:
format: eurorack
width: 8hp
depth: 5cm deep
