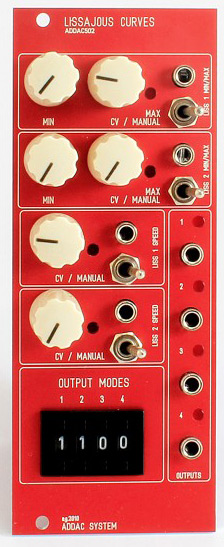

addac system addac502 lissajous curves price : $425.00

the addac502 module generates lissajous curves, so you can use complex harmonic motion in your sinthesis. these elaborated oscillations can create wonderful sounds, that go way beyond typical lfo modulation.

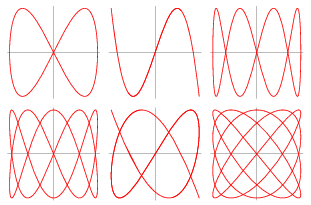

lissajous curves create beautiful motion, that can go from simple circles, to more complex parabolic representations and even pseudo-3d structures or the so-called lissajous knots.



features:
amplitude - maximum and minimum (for both the x and y curves)
frequency (for both the x and y curves)
4 independent outputs
several output modes (controlled through thumb wheel switches)
frequency and amplitude of both curves can be controlled either manually or through cv.
several output modes: curve1 x, curve2 x, curve1 y, curve 2 y or averaging between two or more of the previous.
any of the modes can be mapped to the desired physical output.

specifications:
mechanical:
format: eurorack
width: 10 hp
depth: 6 cm

control voltage i/o:
cv inputs: ±10v
cv outputs: ±5v

electrical:
compatible with ±12v and ±15v power supplies. max current: 150ma
bus board cable: 8 × 2 idc (doepfer style) connector
