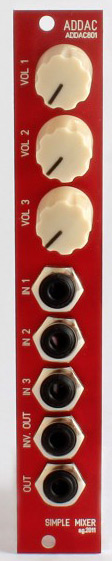

addac system addac801 simple mixer
price : $185.00
|
|
this module allows you to mix up to three input signals, either audio or control voltages. each of the inputs has a dedicated knob to control the overall mix and you also get an inverted output.
features:
3 independent channels
can mix both audio and cv
1 attenuator knob per channel
standard output
inverted output
specifications:
mechanical:
format: eurorack
width: 4 hp
depth: 2.5 cm
electrical:
compatible with ±12v and ±15v power supplies
max current: 20ma
bus board cable: 8 × 2 idc (doepfer style) connector
|
