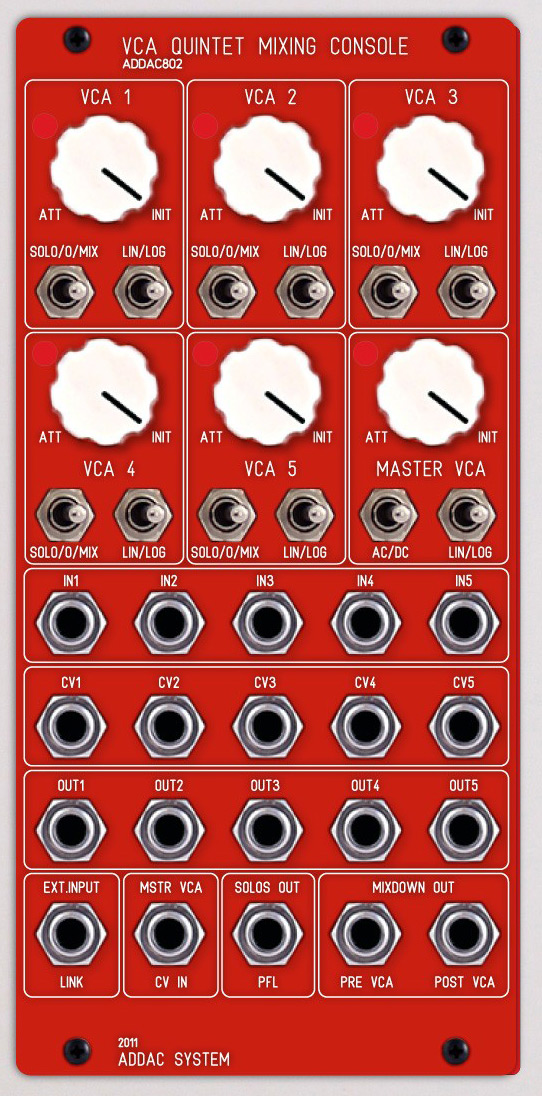

addac system addac802 vca quintet mixing console
price : $425.00
|
|
this module comes to update our previous addac802 audio mixer
features:
5 channel mixer
1 master output
external input into the mix channel for daisy chaining
2 independent mixing paths, solo and mix
mix output includes a 6th vca with pre and post outputs
each of the 5 channels has:
vca with initial knob
monitor led
independent output
linear or logarithmic control
solo/off/mix switch that routes their audio to the solo channel or the mix channelin off position the vca does not go to the outputs.
all 5 vca's can be used separately for different sources (audio or cv) or mix in 2 different chains.
outputs:
1 pre master vca output
1 post master vca output
1 solo output
the solo line is also intended for pre listening purposes, using this output to connect your headphones through some headphone amplifier module
specs:
mechanical:
format: eurorack
width: 12 hp
depth: 5 cm
control voltage i/o:
cv inputs: ± 10v
electrical:
compatible with +-12v and +-15v power supplies
max current: 150ma
bus board cable: 8x2 idc (doepfer style) connector
|
