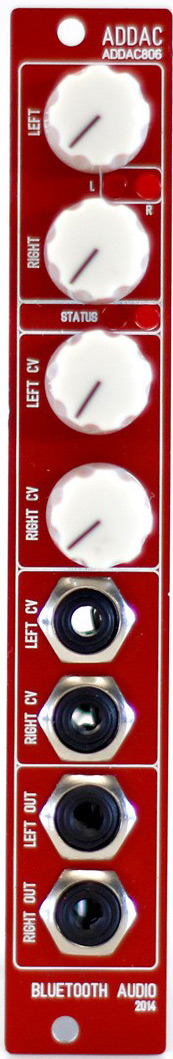

addac system addac806: bluetooth audio
price : $275.00
|
|
this small module will allow you to send wireless audio signals from any bluetooth compatible device straight to your modular.
features:
pre-amps for synth level signal
2 vca's, one for each of the stereo signal. both with cv attenuator knobs.
2 leds to monitor signal level
2 leds to monitor bluetooth status
specifications:
mechanical:
format: eurorack
width: 4 hp
depth: 4.5 cm
electrical:
max current: 75ma on each rail
bus board cable: 8 × 2 idc (doepfer style) connector
|
