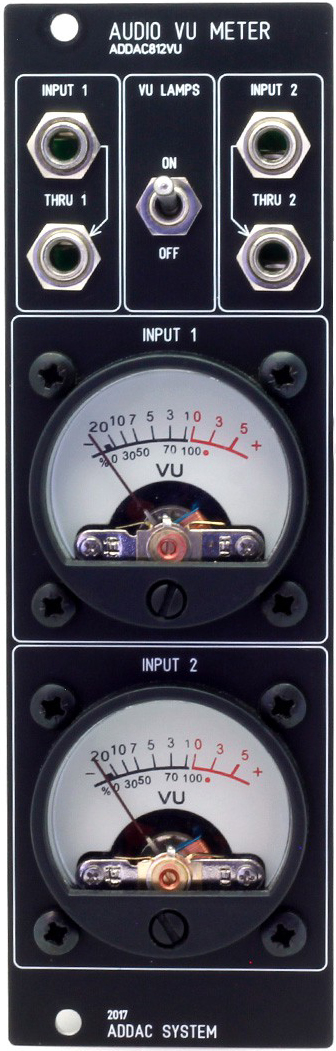

addac system addac812vu audio meter price : $175.00

stereo/dual vu metering module with buffered thru outputs for each channel. an additional switch turns the beautiful lamps behind the vu meters off, in case your rack is running low on power! a couple trimmers on the back of the module allows the user to define the vu range of each channel independently.

mechanical:
format: eurorack
width: 8 hp
depth: 3.5 cm

electrical:
max current with lamps on: +100ma/-10ma
max current with lamps off: +10ma/-10ma
bus board cable: 8 x 2 idc (doepfer style) connector
