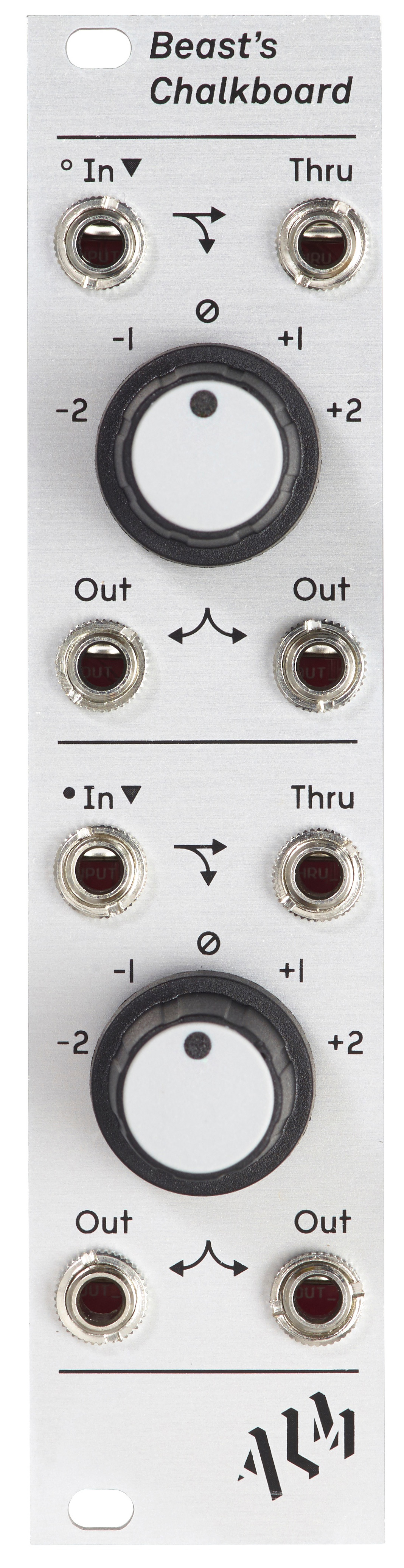

alm busy circuits alm002: beast's chalkboard price : $135.00

features:
dual channel octave switch/voltage adder and source with 1v stepped range of -2 to +2 volts (i.e 5 octaves)
two buffered outputs and through output per channel
top input normalized to bottom. allows input to be varied across both channel outputs
bottom octave switcher can be chained to top extending range to 9 octaves
also functions as 1->6 or dual 1->3 buffered mult.
skiff friendly
designed and built in england.

technical specifications:
supply: ±12v (reverse voltage & polyfuse protection)
current draw: tba
size: 6 hp
depth: 22mm (including power header)
