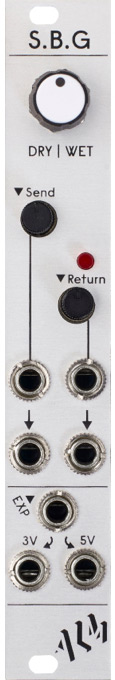

alm busy circuits alm006: s.b.g price : $130.00

the 's.b.g' is a compact utility module intended for the interfacing of guitar effect pedals with your eurorack modular system.

it provides both attenuation and amplification of audio signals for level matching together with a crossfade control to conveniently adjust the wet/dry mix of a processed signal. the module also offers regulation of outgoing cv signals for safer use of pedal expression inputs.

features:
attenuation of outgoing modular audio signal sent to external effects.
amplification of returned audio signal to high modular signals.
clipping indication on over amplification of returned signal.
manual cross fade between original 'dry' source signal and returned 'wet' signal.
regulation/conditioning of cv modulation signals intended for pedal expression inputs.
includes 'floating ring' cable for safe expression input connectivity.
skiff friendly.
designed and made in the uk.

specifications:
supply: ±12v (reverse voltage protection)
current draw: ~30ma
size: 4 hp
depth: 22 mm
