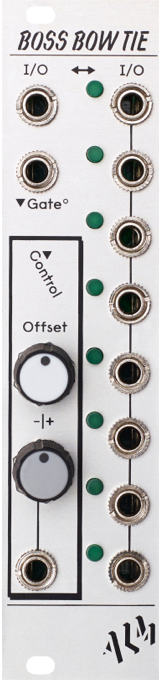

alm busy circuits alm007: boss bow tie price : $250.00

'boss bow tie' is an 8 way bidirectional voltage controlled switch. an input 'i/o' signal is mapped to an output 'i/o' via a corresponding control voltage. as bidirectional, this can be either 1 of up to 8 inputs into a single output or a single input into 1 of up to 8 outputs. the control input features both an attenuverter and offset to precisely select which of the 8 i/o's are available to be 'switched'. a normalized 'gate' input enables and disables the switch allowing for rhythmic and other effects.

the module is intended primarily for flexible routing of cv signals. though audio signals will work - audible clicks can sometimes be apparent when switching i/o's.

features include;
8 way bidirectional voltage controlled switch.
1 input into any 1 of up to 8 outputs -or- 1 of up to 8 inputs into a single output.
attenuverter and offset controls for control voltage input
normalized 'gate' input to enable/disable switch.
fast switching up to audio rates.
skiff friendly
designed and built in england.

technical specifications:
supply: +/-12v (reverse voltage protection)
current draw: ~50ma
size: 6 hp
depth: 32mm (including power header)

download the manual here.
