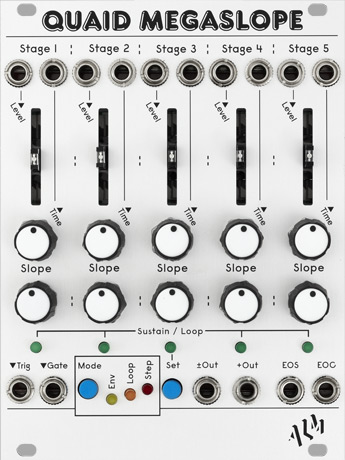

alm busy circuits alm020: quaid megaslope price : $295.00

the 'quaid megaslope' is a five stage function generator or modulator which operates in one of 3 modes; a multistage 'cz' or 'juno' style complex envelope, a super flexible lfo and a step sequencer with per step programmable slew or slides.

each mode produces a varying output voltage moving from point to point across a set number of chained together stages. each stage features a destination level, an overall rate or time to reach its destination level and a variable slope for the output path to take. as well as direct control, every stage feature voltage control of both level and rate. there are both unipolar and bipolar voltage outputs together with triggers emitted for the end of each stage and the end of a full cycle.

the quaid megaslope is designed to be fun, flexible and intuative to use.

quaid megaslope works well with pretty much any module that likes modulation. pamela's new workout works well as a flexible trigger source particularly for the sequencer mode.

pexp-1 features:
flexible single to five stage envelope, lfo or step sequencer
per stage times from approx 1ms to 3 minutes.
cv control of stage level & rate.
variable stage slope control
bipolar, unipolar, and trigger outputs.
quick and simple to use
reverse polarity protection.
skiff friendly.

specifications:
supply: +12v 70ma / -12v 35ma
size: 19 hp
depth: 32mm (including power header)

download the users manual here.
