analogue solutions red square prices : $1,099.00

brief overview of the red square:
the red square is a patchable analogue monosynth that can also be used as an effects processor. it has some of the advantages of a modular synth (re-wireable synth circuits, external control, external signal routing) and the advantage of a pre-patched monosynth (easy to use, instant sound, tidy front panel). its 1/4" jacks sockets mean it can easily be integrated into a studio just like any synth or processor.

applications:
red square introduces 'modular synthesis' style sound creation for all those that are either daunted by the complexities of modulars, do not have to space for them, or for those that find them too expesive. red square gives you the oppurtunity to create a diverse range of sounds by using patch cables to re-route the signals. red square is a quick and easy to use synthesiser as its design is in a more familiar monosynth format.

monosynthesiser:

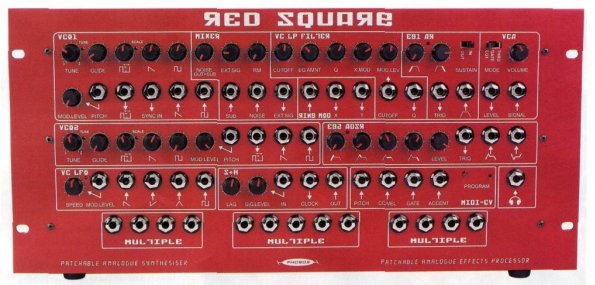

the top row of controls on red square act as a complete (pre-patched) monosynth. this section allows red square to be used straigth away without having to patch any sections together. all that is needed is a midi cable and an audio cable. this means red square can be used straight away with no fuss or confusion as a powerful and flexible synthesiser sound machine.

the top row synthesiser comprises vco1, noise, external signal, sub oscillator, lpf, eg1 and the vca. the ring mod output also goes to the filter audio input, but its inputs must be patched first.

the additional sections like eg2, vco2, ring mod, etc, can be patched into the monosynth to create even more varied and complex sounds, or they can be used independently or in conjuction with other synthesisers.

effects processor:
don't just think of red square as just a patchable synthesiser. it is also a highly versatile analogue effects processor. red square has a panel full of professional quality 6.35mm jack sockets which allows it to be integrated into your studio set-up just like any effects processor. but instead of just another lifeless dsp processor, you have a warm, fat, or even down right dirty analogue effects processor.

the analogue filter or ring modulator can be used as two independent effects processors or chained in series for dual effects. they can be wired into your mixing desk's effect sends and returns just like any other effects unit. the additional sections of red square can be patched in to modulate the effect on your external audio signals. all this and you can still create and use an independent synthsiser patch too!



vco1: glide, sync in, triangle out, saw out, square out, sub oscillator out
vco2: glide, triangle out, saw out, square out
vcf: low pass filter, cut-off cv, q cv, cross modulation from vco1, external signal in
vca: mode switch, cv control
eg1: ar envelope with switchable sustain/release
eg2: full adsr envelope with normal or inverted output
vc lfo: speed cv, saw, inverse saw, square and triangle outputs
sample and hold: lag control
noise generator: white noise
ring modulation
midi to cv converter: with auxiliary controller cv output
headphone output
multiples: 2x 4 ways, 1x 5 way
many other features...

rotary controls: 31
push button: 1
switches: 3 push pull / 2 slide
leds: 4
jack sockets (6.35mm, mono - 1 is stereo); 52
dimensions: 5u/1he (x mm). width (not inc. ears): 435mm. depth: 100mm
weight: 5.5 kg

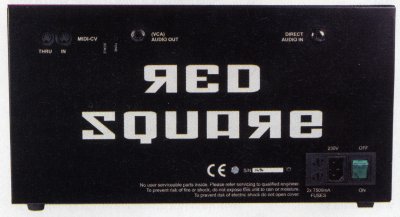

power: 240v or 110v, iec socket
accessories: manual, iec power lead, patch leads
case: rugged steel case and aluminium front panel

audio sample:
all sounds on this demo are made with the red square only.there are no effects or eq. tracks were recorded into cubase. tracks are;
1-snappy bass drum
2-noise snare
3-hi hats
4-ring modulated sound
5-bass line
6-lfo fx
7-sync intro sound
8-lfo lead 2
9-fx bass drum

to view the manual, click here.
