audio damage

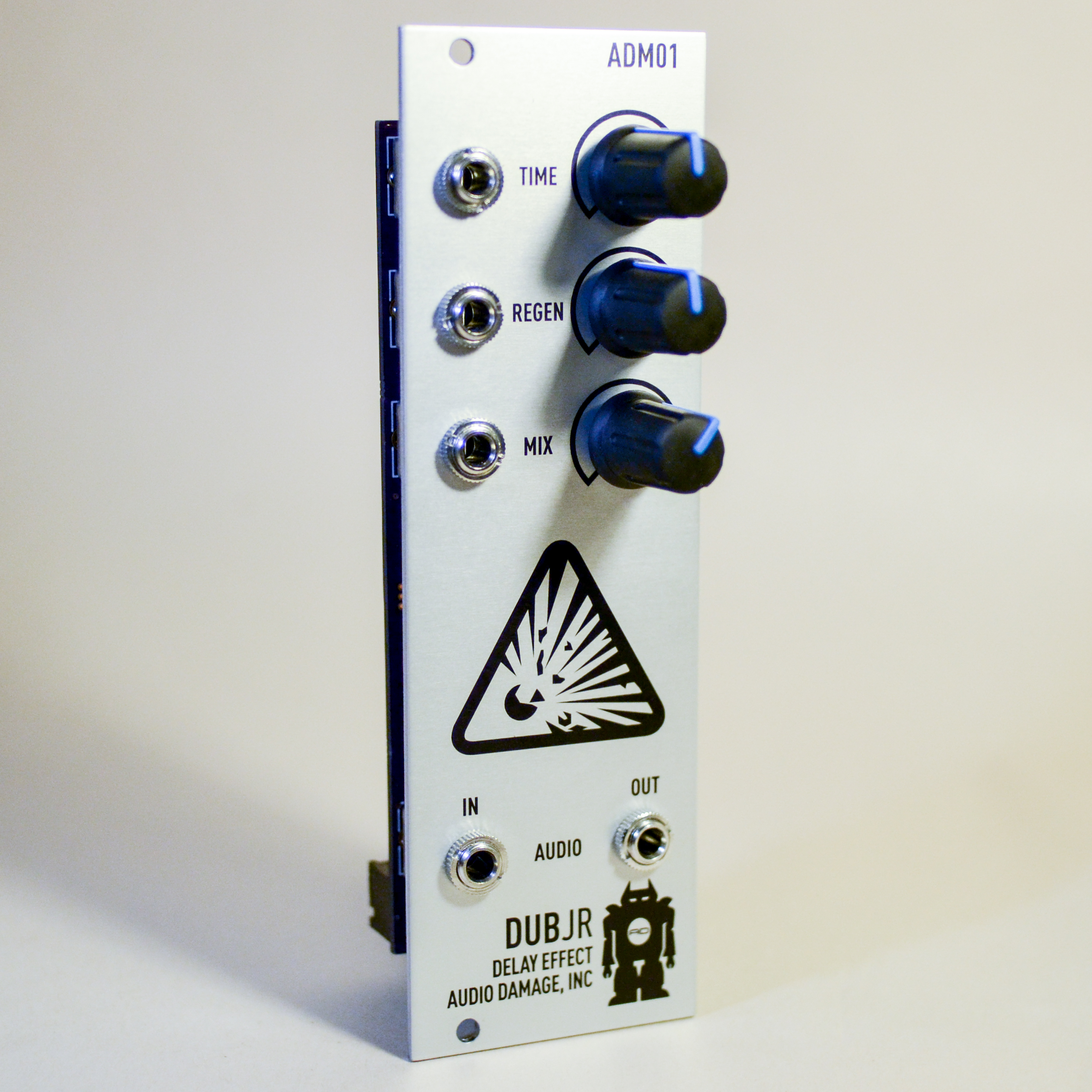

adm01: dubjr
price : $189.00
|
![](adm01s.jpg)
|
the adm01 dubjr is a voltage-controlled eurorack delay module with the following features:
time controls the analog-style delay that goes from 5ms to 1 second.
regen controls the feedback of the delay. at full feedback, dubjr self-oscillates.
mix control crossfades from dry to wet.
cv control of all parameters.
8hp panel size.
skiff-friendly 20mm depth.
60ma current draw.
click here to download the manual.
|
