audio damage

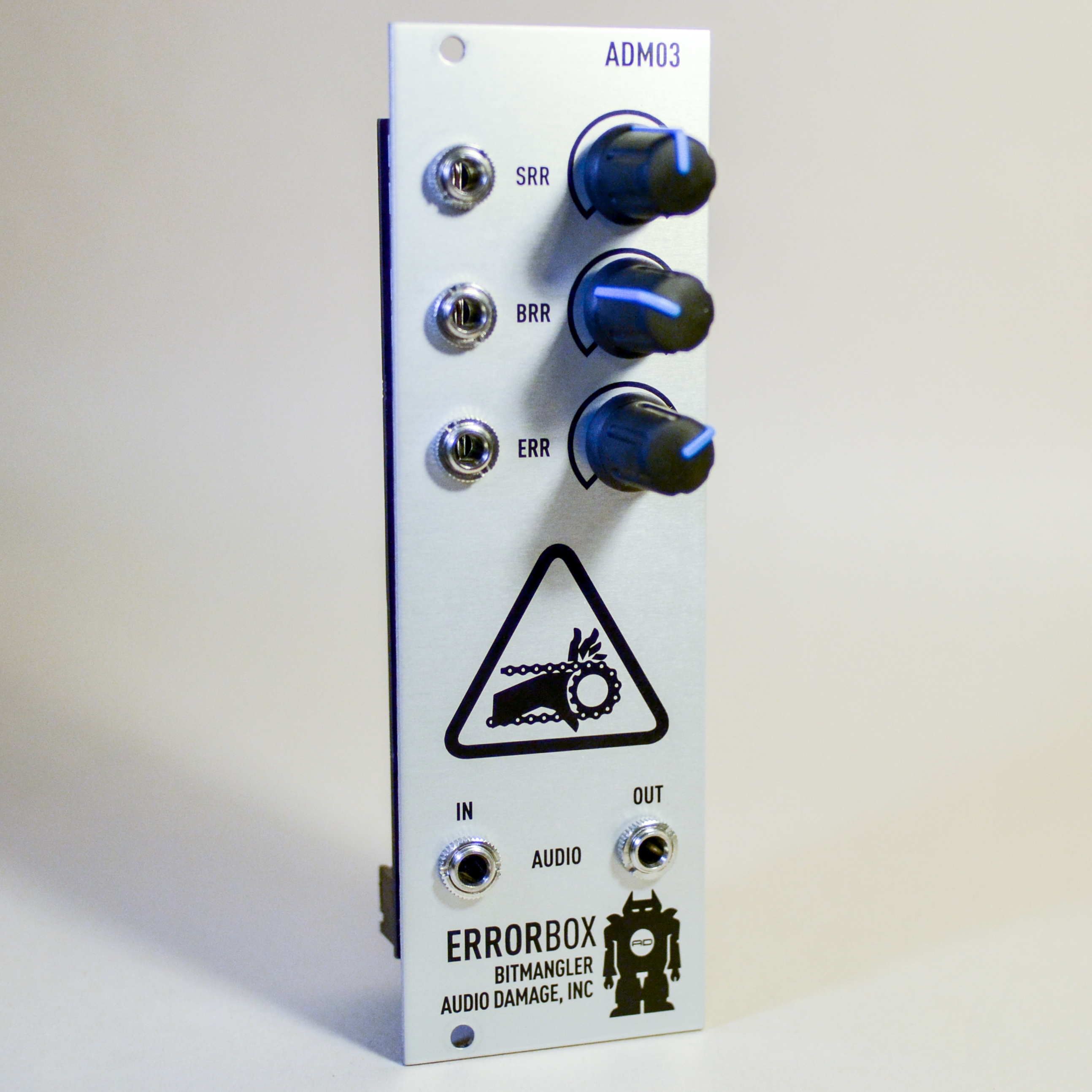

adm03: errorbox
price : $189.00
|
![](adm03s.jpg)
|
the adm03 errorbox is a voltage-controlled eurorack signal reduction module with the following features:
srr controls the sample rate of the signal, from 48khz to 50hz.
brr controls the bit depth of the signal, from 16 bits to 1 bit.
err is our proprietary intentional error algorithm.
cv control of all parameters.
8hp panel size.
skiff-friendly 20mm depth.
60ma current draw.
click here to download the manual.
|
