audio damage

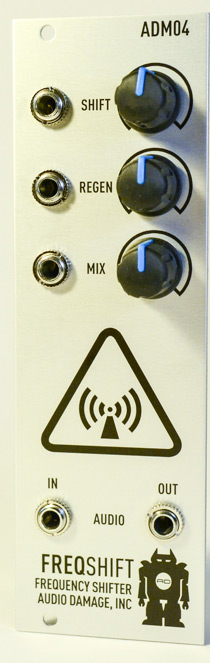

adm04: freqshift
price : $189.00
|
![](adm04s.jpg)
|
freqshift is a digital recreation of the analog frequency shifter modules of decades long gone. unlike the more common pitch shifter, which raises or lower the pitch of a sound by some ratio (such as an
octave or a fifth), frequency shifters add a specific frequency ( 321hz, for example) to the signal and all of its harmonics. this alters the timbre of the sound in a manner unlike other familiar effects
processors. freqshift replaces complex analog circuitry with calibration-free digital processing, delivering a frequency shifter in a compact, flexible, but economically priced eurorack module.
shift control goes from 1000hz down to 6000hz up, with a scaled section near the 12-o'clock point to enable easily adjusting the "sweet spot" small shift values.
regen control is bi-polar. clockwise feeds back up-shifted signal only, while anti-clockwise feeds back the down-shifted signal only.
mix control is bi-polar. clockwise mixes in both the up and down shift, while anti-clockwise mixes in only the knob's shift value.
cv control of all parameters.
8hp panel size.
skiff-friendly 20mm depth.
60ma current draw.
click here to download the manual.
|
