bastl instruments
dc motor

price : $129.00

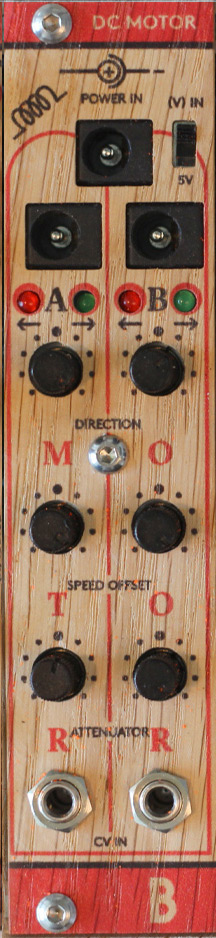

DC Motor

dc motor can drive 2 dc motors with speed and direction control depending on the cv input. motor driving circuitry and cv input circuitry are optically isolated without any ground connection. requires external power supply for driving motors.

features:
two channel bipolar dc motor driver
cv circuitry and motor circuitry are optically isolated
external power supply for motors required
motors are driven directly from power supply
bipolar cv input with attenuator per channel
speed offset knob per channel
directional offset knob per channel
maximum peak current 1a, constant current 600ma

technical details:
6hp
ptc fuse and diode protected 16pin power connector
50mm deep
motor output: maximum peak current 1a, constant current 600ma

download the manual here.
