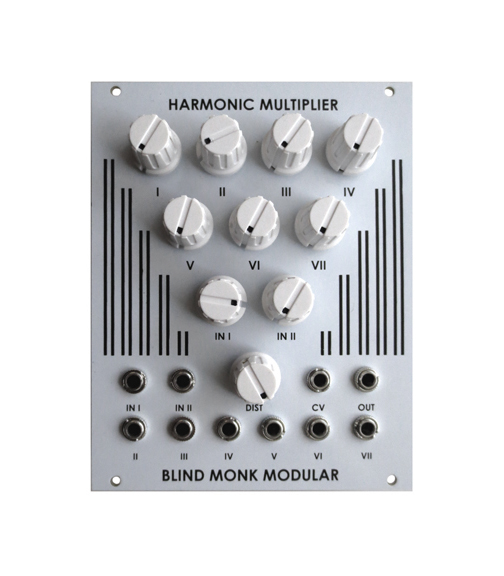

harmonic generator and wave shaper. capable of creating unique and complex tones, it takes an audio input from a triangle wave oscillator and multiplies the frequency up to seven times. it can process other
audio signals as well. there is a built in distortion circuit for additional timbres. input two oscillators and get a variety of ring modulator sounds and feedback is available for even further tones and
harmonics.
20hp, all analog circuitry
individual knobs and outputs for each of the harmonics
six stages of wave folding
distortion circuit for thick pulse width sounds and sync style tones
feedback capable of creating crunchy digital sounding harmonics
input control voltages for wave symmetry, chorus like effects, and feedback tone control
audio samples: sample one: two oscillators on the inputs. two outputs from individual harmonics fed into a fader module with lfo control. sample two: one oscillator audio sequence on the input. internal feedback controlled with cv input. sample three: distortion circuit. standard monosynth input. sample four: two oscillator sequence on the input with standard vca/envelope. sample five: sequence on the input. output fed into fader module with lfo control. sample six: po12 drum machine input then turning up the distortion and adding oscillator/sequencer.
