blue lantern

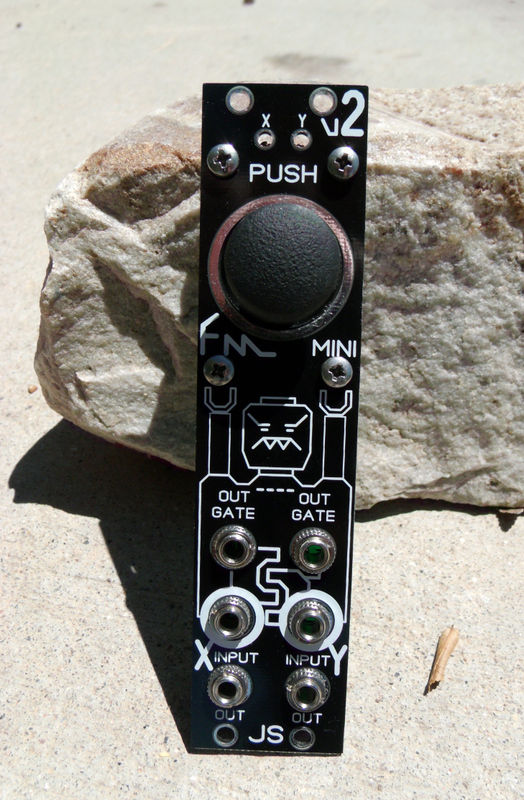

mini fm joystick v2: black

price : $95.00

Mini FM Joystick V2: Black

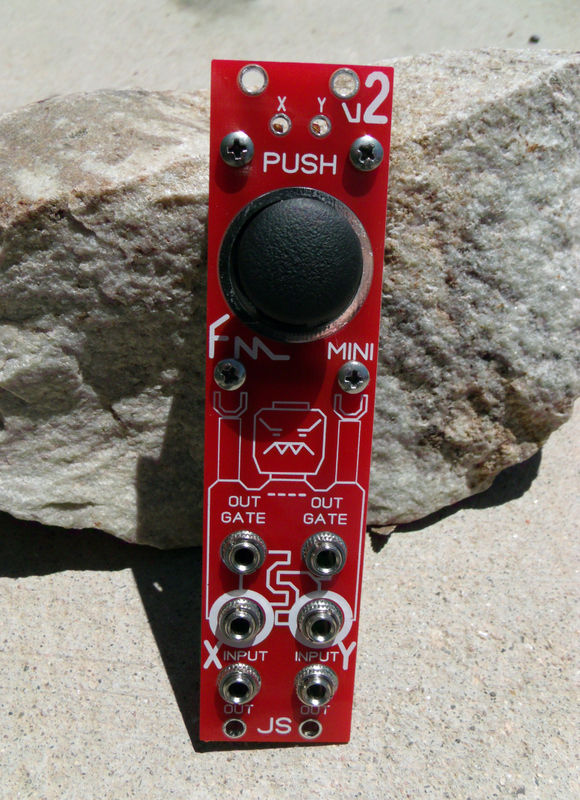

mini fm joystick v2: red

price : $95.00

Mini FM Joystick V2: Red

this module uses an attenu-inverter circuit for each of the two x and y axis. you can patch an lfo, vco, etc. and use the joytick to fm an expternal vco for example. when you use only the output on the mini fm joystick there is an internal 6.9v reference voltage so that you can voltage control your external modules. for example you can control a vcf module's cutoff parameter using the mini fm's joystick.

there is also a 6.9v gate output when you push the joystick.

the sale includes m3 mounting screws and the ribbon power cable.

specifications:
width: 6hp
current: +8ma, -4ma
