blue lantern

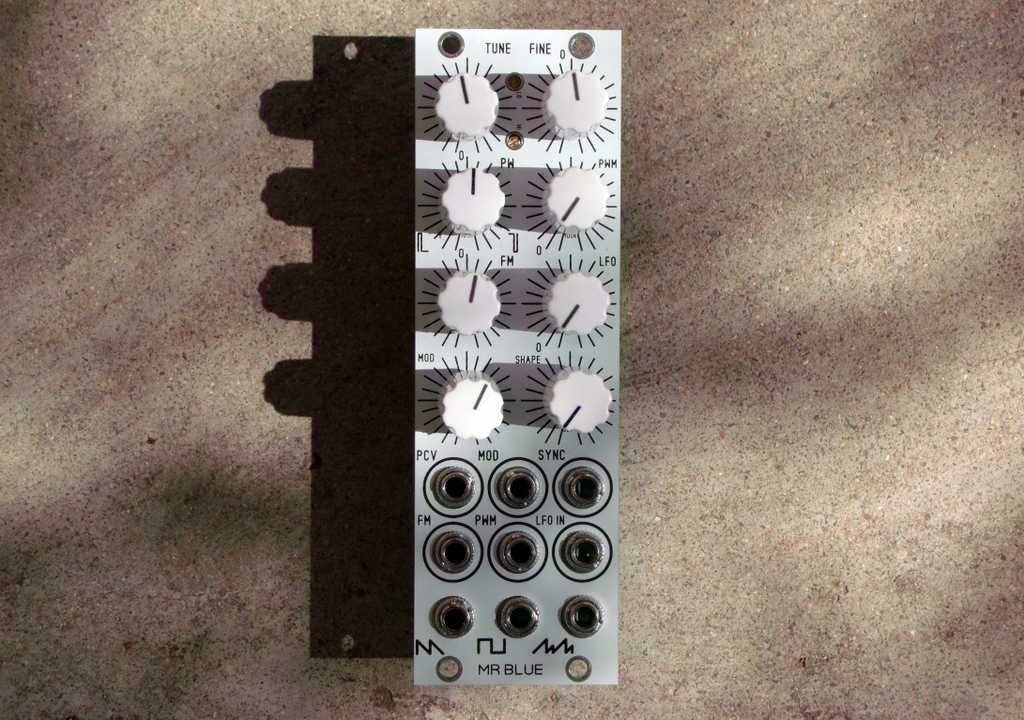

simple vco

price : $175.00



the simple vco is a low cost, saw core oscillator. it also makes a fine low cost option to add an animated super saw to your rig.

this module was influenced using articles found in electronotes, by burnie hutchins. blue lantern used precision reference voltages for the tune, fine, and pulse width control.

core type: saw core
sync type: hard, square wave input optimized

wave ouputs: saw wave, variable square wave, variable super ramp wave.

controls:
for the core vco: tune knob, fine knob, bipolar fm cv, dc mod knob, pulse width control & pwm control.
for the super saw: shaper knob and lfo input attenuation.

specifications:
8hp wide
depth: 1.5 inches
current: tba
module color: white
