blue lantern
sir mix alot (blue front panel)

price : $150.00

Sir Mix Alot (Blue Front Panel)

the sir mix alot is a 12 hp analog mixer that sums 6 channels of mono signals and outputs a mono signal. this module replaces 'the mix which was a dc only 6 channel mixer.

module type: mono mixer
module color: purple
# of channels: 6
size in width: 12 hp



each channel has an ac or dc mode. ac mode uses a 2.2uf capacitor.
each channel has a mute toggle switch.

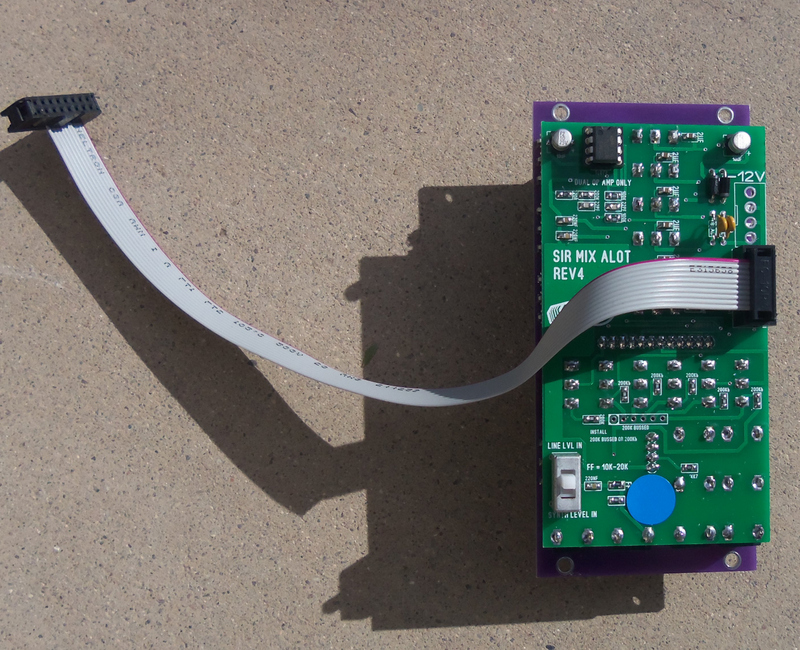

the direct input is used to chain more then one mixer, or use as a line level input. there is a slide switch on the back of the module to select either 'synth level' or 'line level'.

click here for the users manual.
