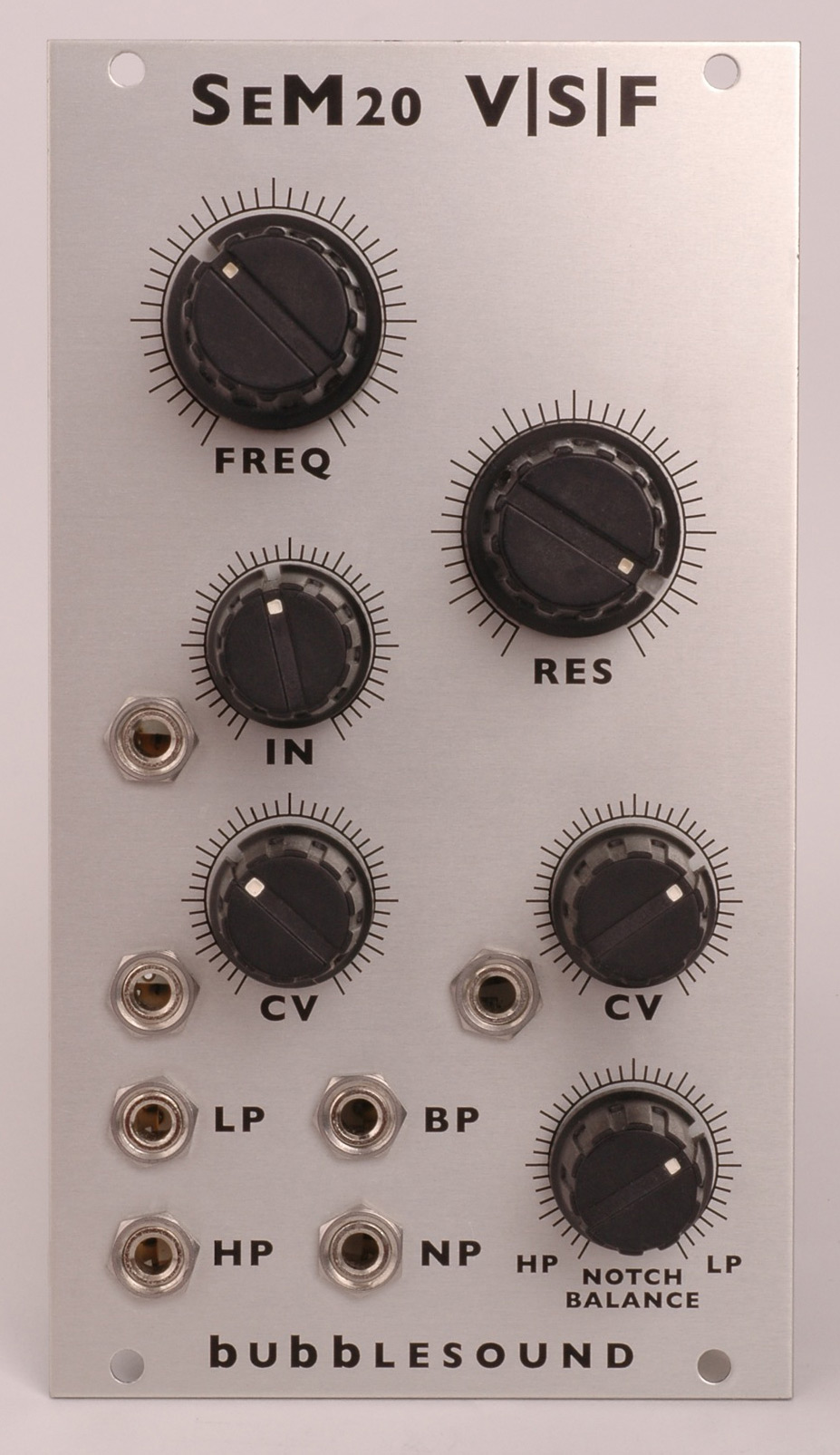

bubblesound sem20 v|s|f
price : $199.00
|
|
2 pole state variable filter
12db high pass, low pass and notch filter
6db band pass
self oscillation in all modes
2 cv frequency inputs with attenuators
notch filter balance sweeps between high and low pass

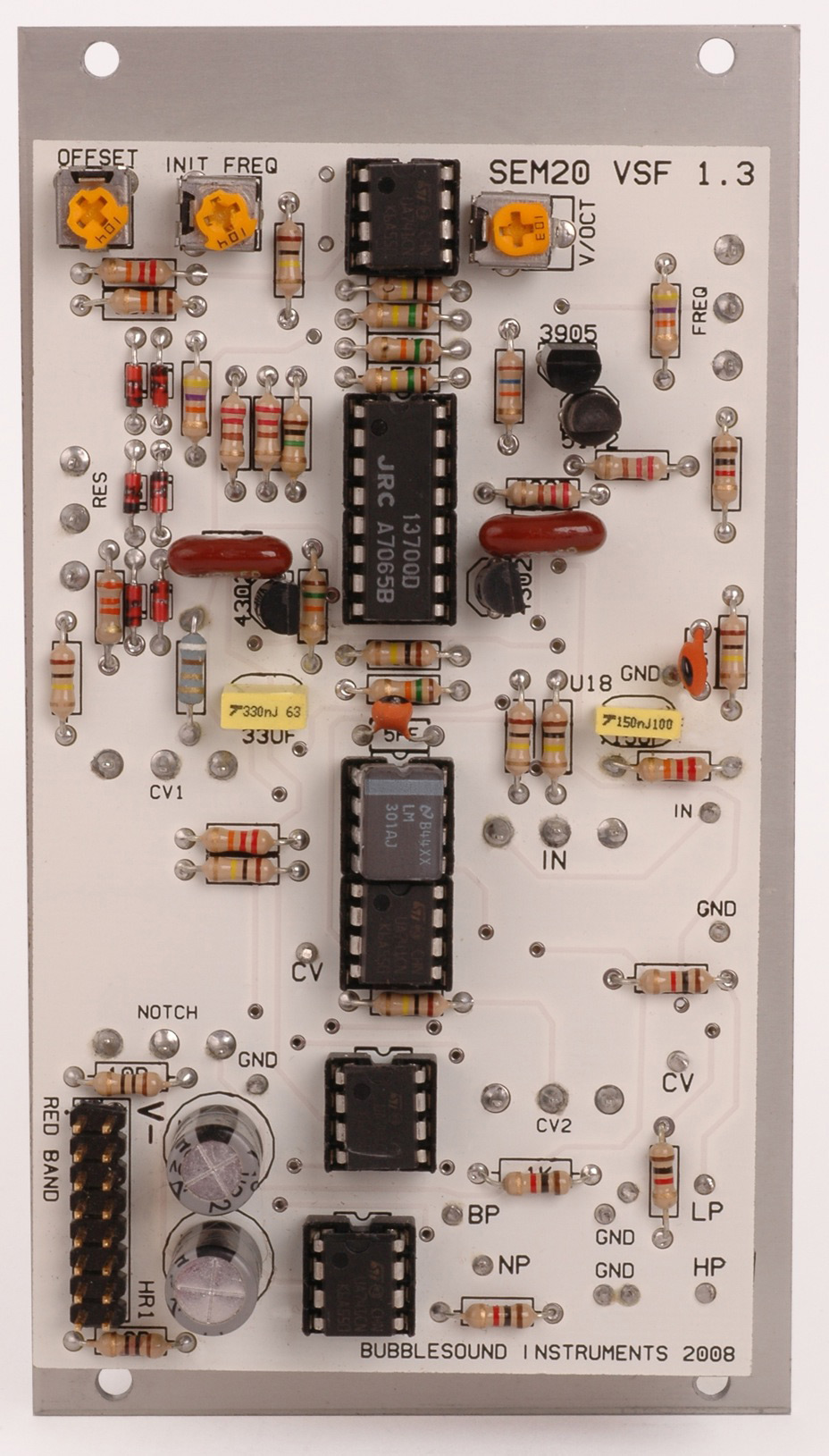

![](backs.jpg)
width: 14hp
current draw: 70ma
|
