circuit abbey euro-duino: assembled
price : $145.00
|
|

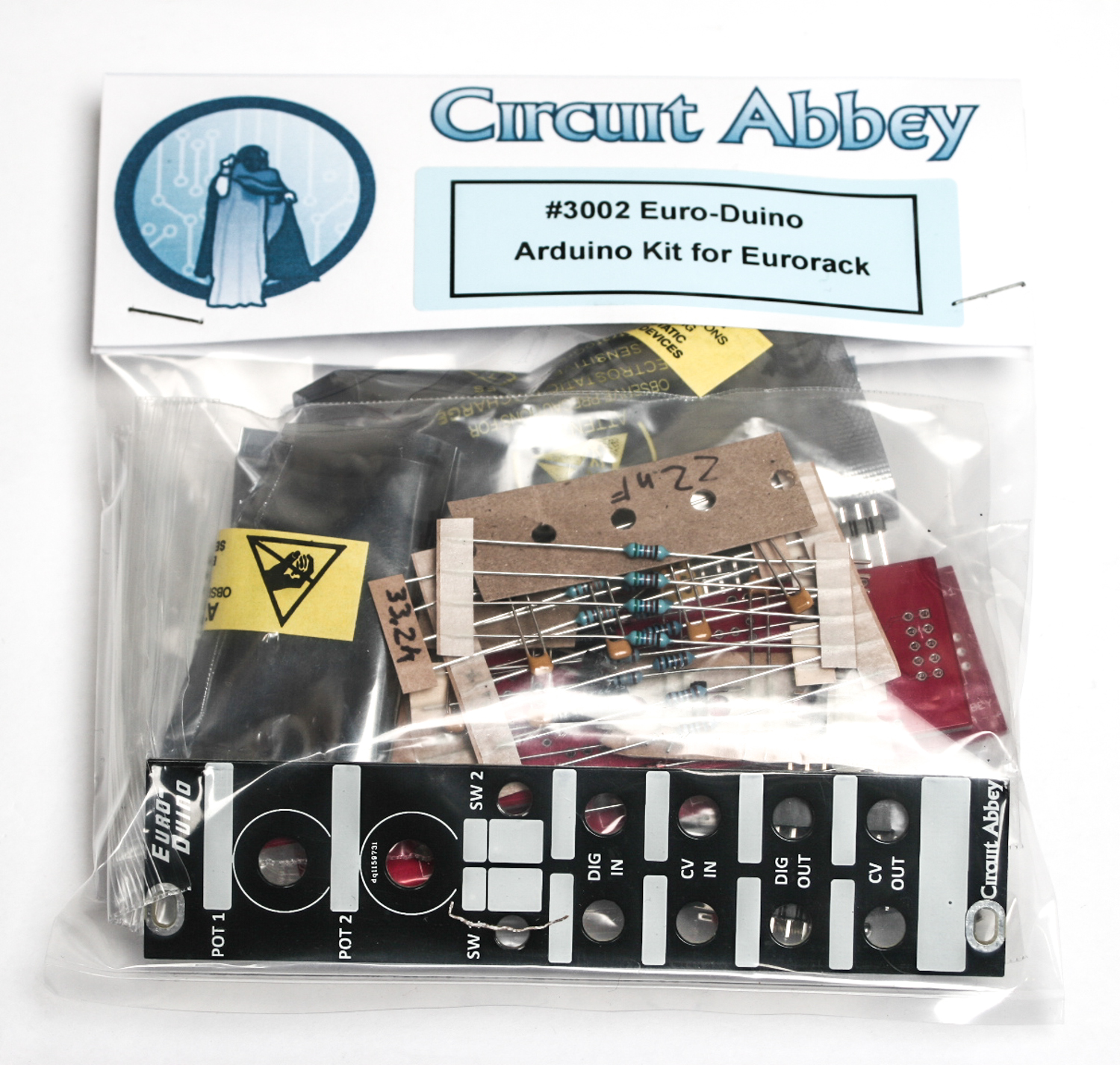

euro-duino diy kit, requires user assembly)
price : $95.00
|
|
euro-duino/arduino download cable
price : $18.00
|
|
the euro-duino is a generic arduino-based eurorack kit in 6hp. it uses an arduino pro mini 328 at 16 mhz. there are two versions of the euro-duino available. the first is an assembled module, ready to be mounted
directly in your eurorack modular. the other version is a diy kit which needs to be built by the end user.
features:
2 cv inputs
2 cv output
2 digital inputs
2 digital outputs
2 pots
2 3-position toggle switches
uses regular arduino ide for programming and downloading
6hp, 47mm deep
assembly instructions
getting started
main board schematic
main board placement
control board schematic
control board placement
|
