circuit abbey
andy

price : $75.00

Logic Modules
ory

price : $75.00





verty

price : $75.00




xory

price : $75.00

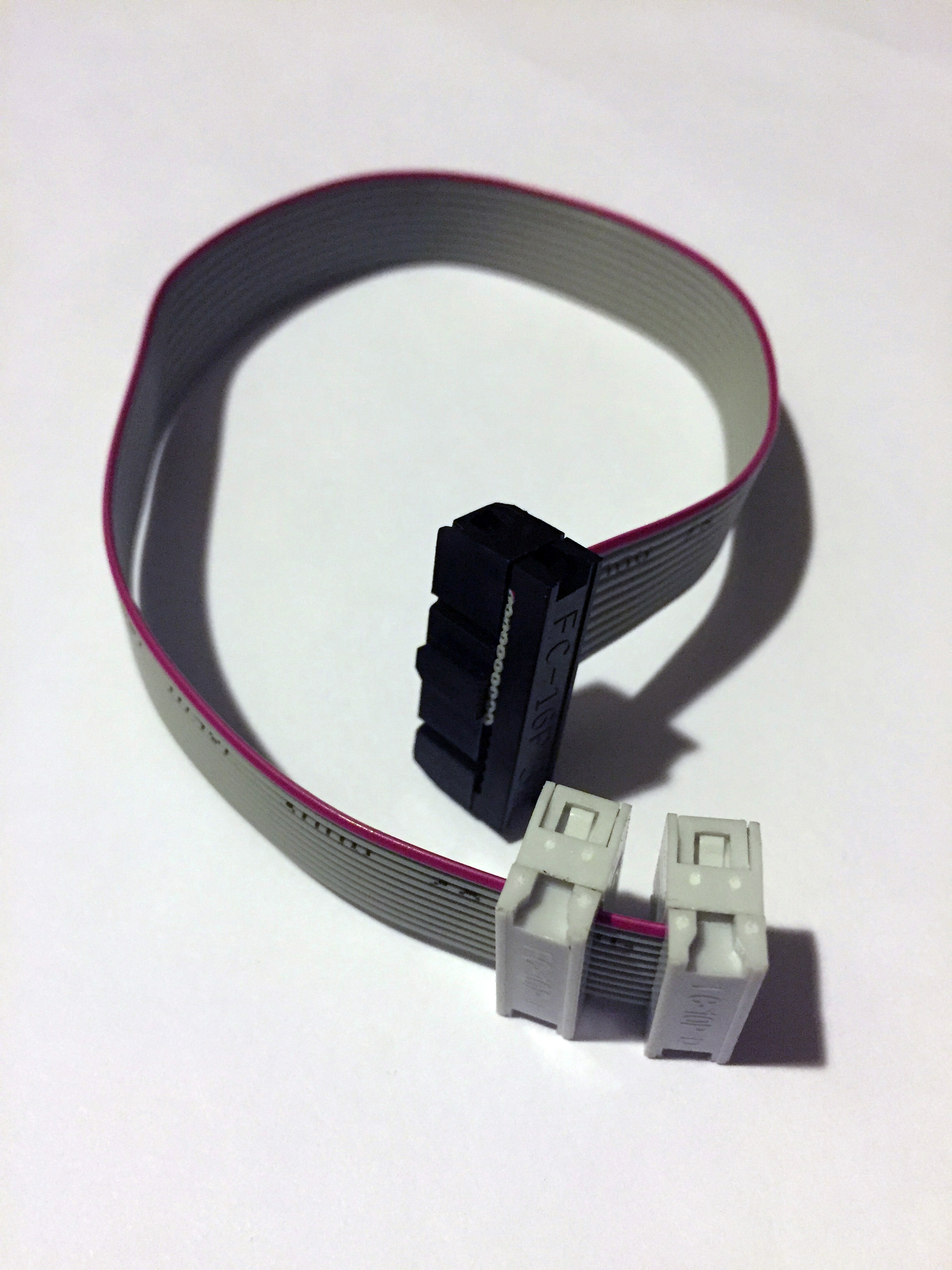

dual connector cable

price : $5.00

Dual Connector Cable
quad connector cable

price : $7.00

Quad Connector Cable

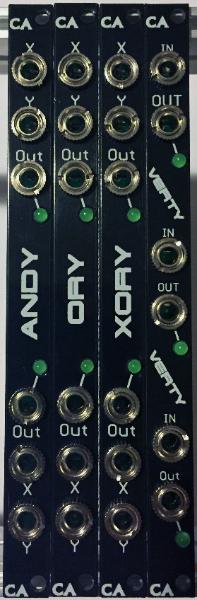

the 2hp logic modules are simple, single-function logic blocks. the andy, ory and xory each have 2 sections of 2-input logic blocks. the verty has 3 inverters.

the following tables show the logic functions:

andy
X
Y
OUT
0
0
0
0
1
1
1
0
1
1
1
1


ory
X
Y
OUT
0
0
0
0
1
1
1
0
1
1
1
0


xory
X
Y
OUT
0
0
0
0
1
0
1
0
0
1
1
1


verty
IN
OUT
0
1
1
0

all logic modules have input protection and output buffering. the logic modules can operate at audio rates and can produce some interesting effects. this is especially true of the xory, which can be thought of as a digital ring mod. slam some square wave vco signals into it and listen to the fun!

each 2hp module comes with a power cable, but since this will eat up the available power taps in your case, we are offering 2 and 4 slot power cables.

these 2hp module has a maximum 20 ma current draw. module depth is 48mm.
