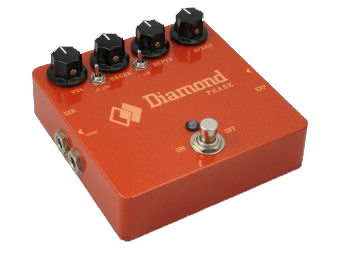

the diamond phase is a versatile new selectable 2 / 6-stage jfet phaser with full control over depth, feedback regeneration and direct-to-phase signal mix level. phase / vibe
modes. ultra-smooth sinusoidal lfo waveform. expression control for lfo speed. auto-buffered direct out channel (true bypass when not in use). power by external 18 to 24v adapter
or pedal power supply.
diamond phase features:
- selectable 2 / 6-stage jfet phaser
- versatile control over depth, speed and feedback regeneration
- phase / vibe mode switch (vibe mode is also a kill-dry mode for use in amplifier parallel fx loops)
- output volume control
- pures sinusoidal lfo waveform, speed adjustable from 0.2 to 10 hz
- auto-buffered direct signal output path - buffers a 2nd dry output channel only when plug is inserted in direct output, completely removes buffer for true bypass operation in mono mode
- all analog circuitry
- led indication of lfo speed
- expression pedal control of lfo speed
- vishay jfet, burr-brown audiophile opamps and panasonic polypropylene capacitors
- genuine hammond cast aluminium 4.7 x 4.7 x 1.0 inch case
diamond phase sound samples:
below are some sound samples of the phase pedal. all samples recorded using a fender '59 bassman ltd reissue normal channel (volume approximately 2.5, all other controls at
midpoint) mic'ed with 2 shure sm57 microphones direct to an alesis adat hd24xr and converted to mp3 format. no external processing was employed. all knob settings referred to
using time clock locations (12 o'clock, 3 o'clock, etc.) or "min" and "max". all clips begin with a short section of no effect, followed by an effect section. note that sample c
features a short no effect section and then alternates between 2 and 6 stages while all other controls remain fixed.
