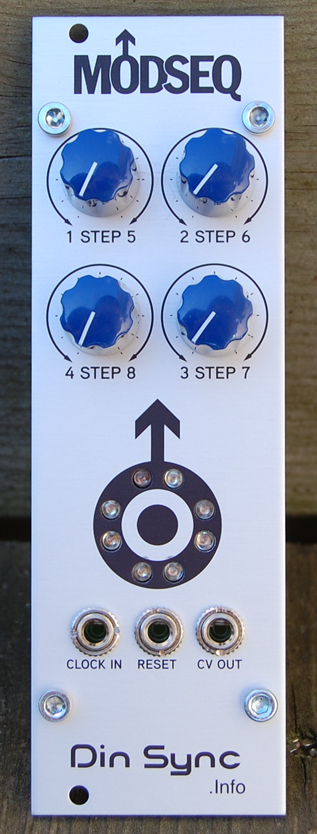

the modseq is a low cost, low hp, 8 step auxiliary sequencer. as the name implies its primary duty is for modulation, however it will function perfectly well as a note sequencer. since the modseq has only 4
knobs but 8 steps, steps 5-8 share the knobs of steps 1-4 but in a mirrored fashion. the result of this is somewhat akin to a sample and hold circuit but programmable rather than random.
specifications:
reverse power protected
width 8 hp
depth 20 mm (measured from the rear of the faceplate) / 29mm to the edge of the supplied and connected power cable
power consumption: ~10 ma (<6ma +12, <4ma -12).
