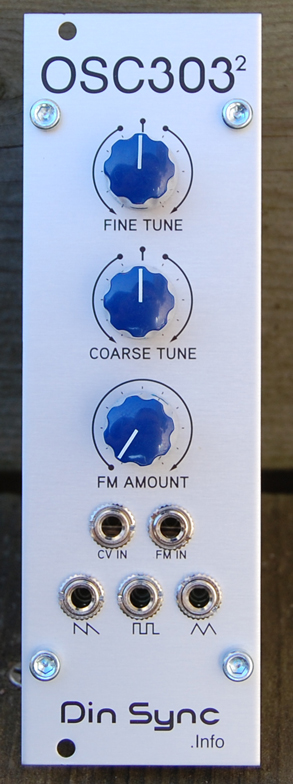

the osc303 mkii is an updated version of the osc303 with various improvements. complete pcb redesign in the style of the drumdokta and vcf303 (skiff friendly).
silver anodized, aluminum panel with sub-eloxal print (printed directly into the oxide layer). fine and coarse tune. now free running. much louder outputs. linear fm with attenuation. bonus waveform, the not
so triangle, triangle.
specifications:
reverse power protected
width 8 hp
depth 42 mm (depth is measured from the rear of the faceplate to the edge of the supplied and connected power cable)
power consumption: ~32 ma (<21ma +12, <11ma -12).
