doepfer
a-100 diy kit #1
(with external power supply)

price : $195.00

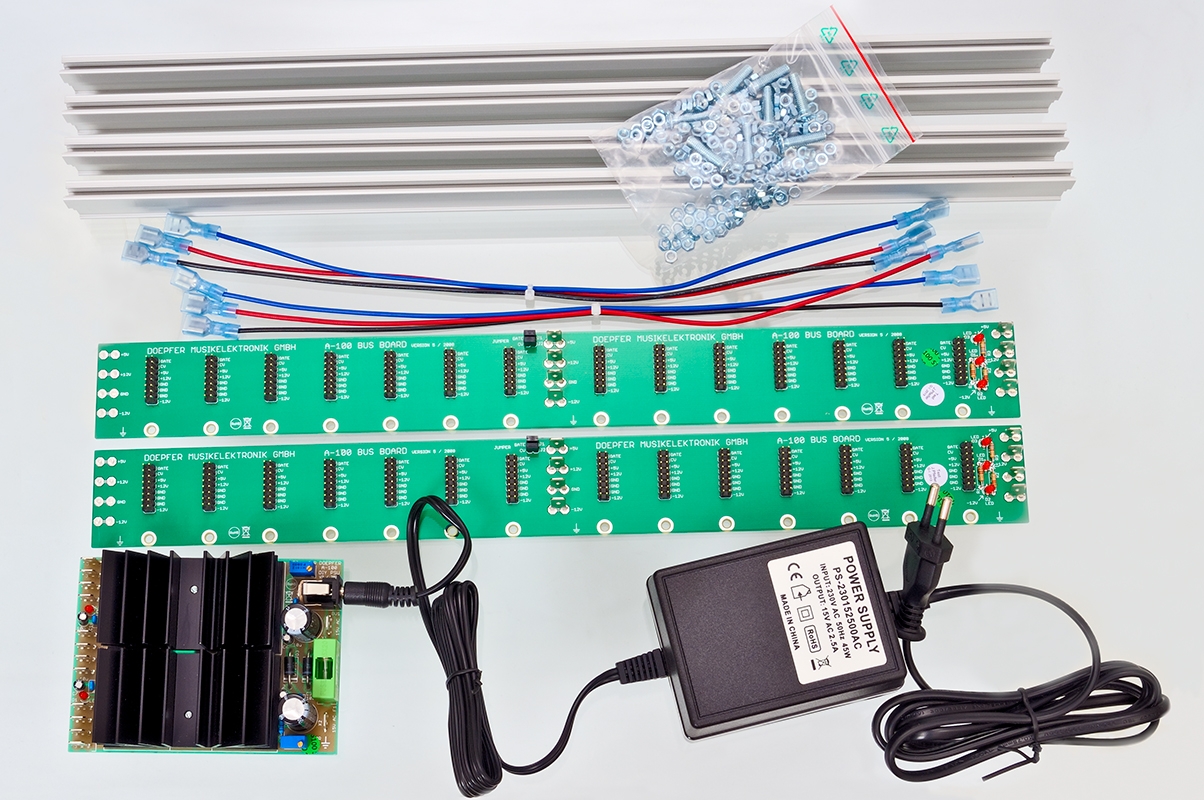

A-100 DIY Kit #1 with External Power Supply

the a-100 diy kit #1 is a combination of components that allows the inexpensive do-it-yourself construction of a case for the a-100:

power supply with external transformer (ac output)
because of safety reasons, no dangerous voltages accessible
max. current: 1200ma (same as psu2, but external transformer instead of ring core transformer)
2 bus boards
four 84 hp mounting rails with threaded inserts for module mounting (sufficient for 2x3u)
cable for connections between power supply and bus boards
sketches with measures (for drilling the holes at the right positions for psu and bus board mounting)
building suggestion for wooden case (sketch + list of all required wooden case parts)
additional installation material like screws, nuts or distant bolts (e.g. for bus boards, power supply board, rails) is not included as these parts depend upon the type of case built by the customer

the technical documents are available as pdf file.
