doepfer
a-100 pms12 (with psu3)

price : $1,999.00


A-100 PMS12

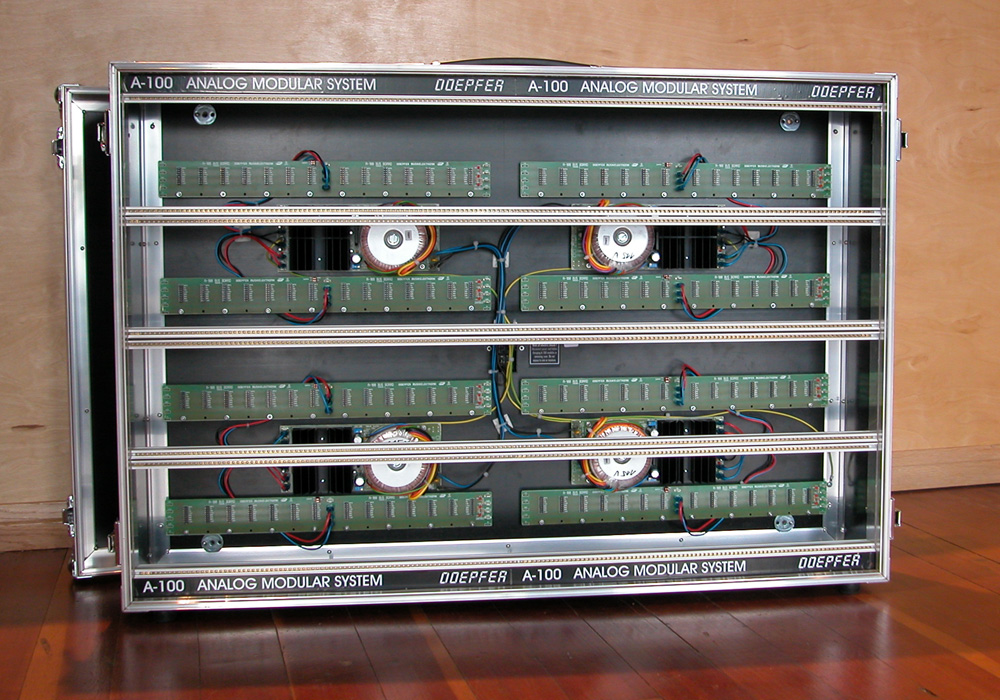

as a special design the suitcase version of the a-100 frame is available even in a "monster" version with double width and height (168hp / 12hu). it can be chosen between a single and double version of themonster suitcase and even the monster cases are available in black or grey. for the double version the two suitcases are fixed together face-to-face during transportation so that no covers are required (asfor the single version). each monster suitcase is equipped with four power supplies with toroid transfomer/1200ma

single version of the 12u/168hp a-100 monster case (a-100pms12):
outside dimensions (with front cover, closed state): ~ 90 (length) x 62 (height) x 23 (depth) cm

weight of the single case (incl. bus boards, power supplies, with front cover, without modules): ~ 20 kg

outside dimensions of the single case (without front cover): ~ 90 (length) x 62 (height) x 18 (depth) cm

weight of the single case (incl. bus boards, power supplies, without front cover, without modules): ~ 16 kg

weight of the front cover: ~ 4 kg

available 19" width and height: 12 u x 168 hp

max. module current: 4.8a (four power supplies 1.2a each, one power supply is assigned to two bus boards)

inside usable depth for a-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc boardof the module)

position of the mains inlet: center of the rear panel (standard), upon request even at the front side (same remarks as for the normal suitcase are valid)
