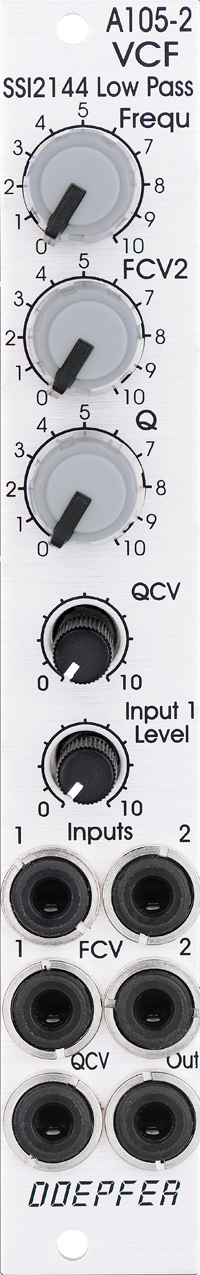

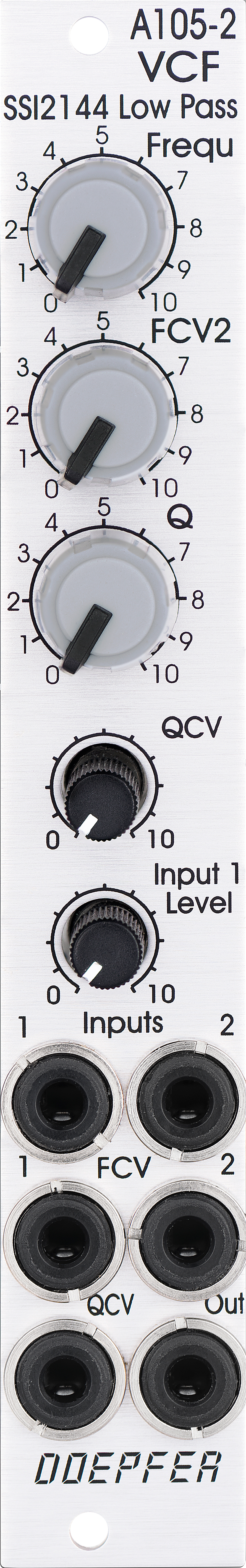

doepfer a-105-2 24db ssi low pass filter price : $125.00

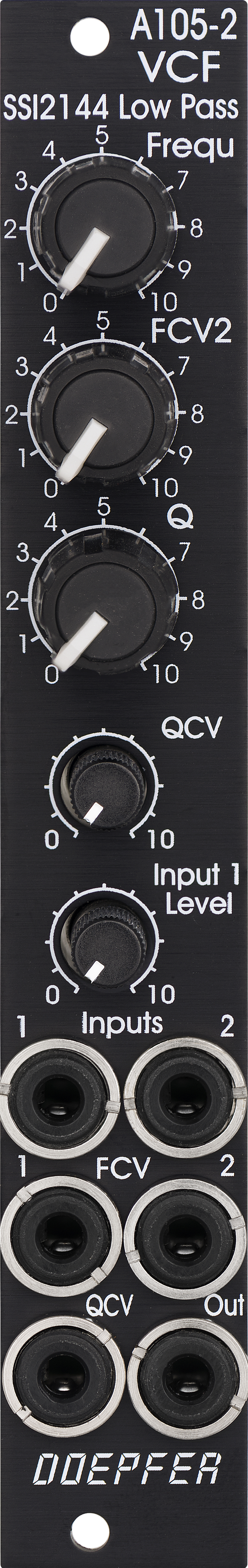

a-105-2 24db ssi low pass filter: vintage edition price : $139.00

module a-105-2 is a voltage controlled low pass filter with 24db/octave slope. it is the successor of the a-105 which had to be discontinued because the obsolete ssm2044 filter circuit. the a-105-2 is based on the ssi2144 which is in turn the successor circuit of the ssm2044. the features of both modules are nearly the same. the main difference is the clearly reduced front panel width of the a-105-2 (4hp instead of 8hp) and the associated changes of the controls and sockets positions. in addition the a-105-2 is equipped with 2 audio inputs.

the module has these controls and in/outputs available:
control frequ: manual frequency control
control fcv2: attenuator for the frequency control voltage applied to socket fcv2
control q: manual resonance control
control qcv: attenuator for the resonance control voltage applied to socket qcv
control input 1 level: attenuator for the audio input signal applied to socket input 1
socket input 1: audio input 1 (with attenuator)
socket input 2: audio input 2 (without attenuator)
socket fcv1: frequency control voltage 1 (without attenuator, about 1v/oct scale)
socket fcv2: frequency control voltage 2 (with attenuator)
socket qcv: resonance control voltage (with attenuator)

socket out: audio output technical notes:
frequency range: about 15hz ... 15 khz
resonance up to self oscillation
max. input voltage at input 2 without clipping/distortion: about 15vpp
max. output voltage without clipping/distortion: about 15vpp
the signals of both inputs are mixed before they are processed by the filter. this saves an external mixer for small setups.

this module has a maximum current draw of 20ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
