doepfer

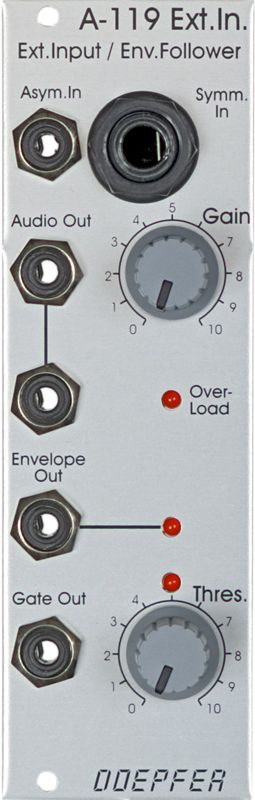

a-119 external input / envelope follower
price : $86.00
| ![A-119 External Input / Envelope Follower A-119 External Input / Envelope Follower](a119s.jpg) |

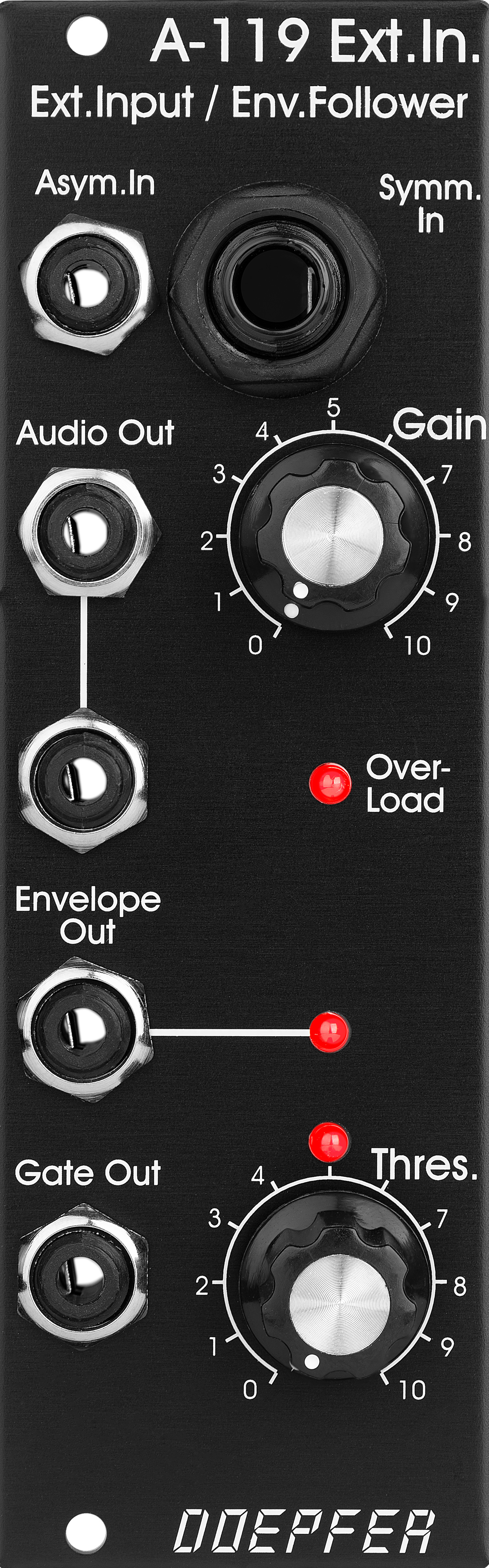

a-119 external input / envelope follower: vintage edition
price : $95.00
| ![A-119 External Input / Envelope Follower: Vintage Edition A-119 External Input / Envelope Follower: Vintage Edition](vintages.jpg) |
module a-119 (external input / envelope follower) is designed to allow external audio signals to be integrated into the system a-100. it comprises a pre-amp, envelope follower, and comparator.
the pre-amp has two inputs: an unbalanced input for line level signals, with a gain factor of from 0 to 20, and a balanced input with a gain factor of from 0 to 500, for insertion of low level signals, for
instance from a microphone or electric guitar.

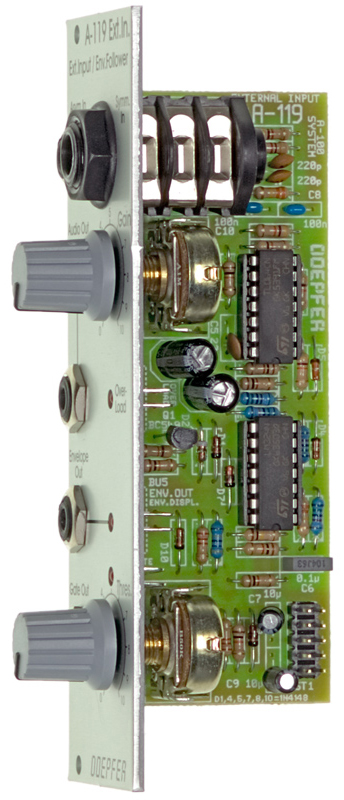

![](sides.jpg)
the envelope follower reads the signal level of the input, and puts out a proportional voltage as an envelope at its own output.
the comparator generates a gate signal whenever the input goes above an adjustable trigger threshold.
three leds help you keep track of overload, the envelope, and the gate signal.

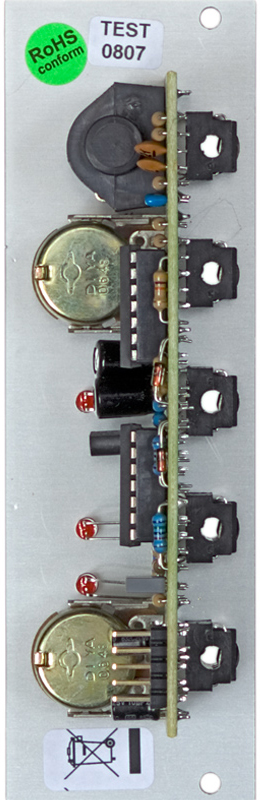

![](backs.jpg)
this module has a maximum current draw of 30ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
