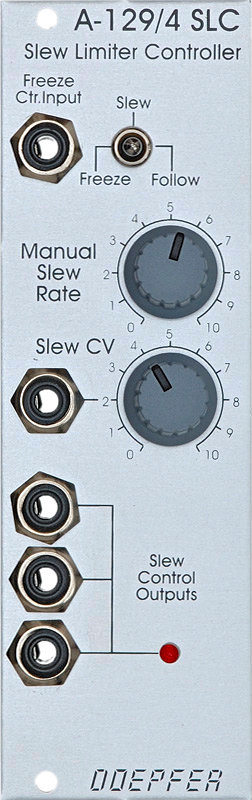

doepfer a-129-4 slew-limiter controller (vocoder subsytem)
price : $90.00
|
|
to use the slew limiter section of the 129-3, you need to have module a-129-4 (slew limiter controller) as well. it has several dedicated functions, and gives you control over the
following slew limiter functions:
manual control of the slew rate
cv control of the slew rate, with an input attenuator
choice of three functions: "follow", "slew" and "freeze"
freezing the output voltages for the duration of a gate

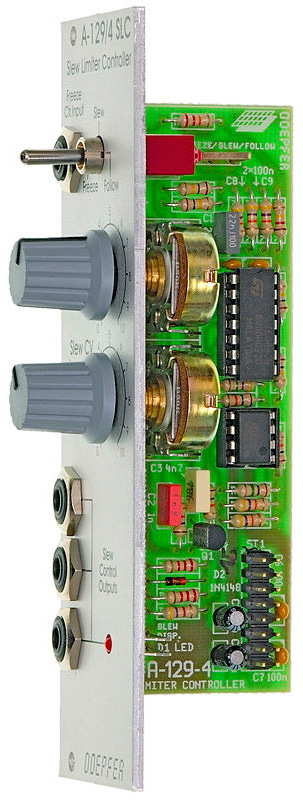

![](sides.jpg)
this set of functions is operated by the slew limiter controller, a-129-4. for this the slew control outputs of the a-129-4 are connected to the slew control inputs of up to three a-129-3.

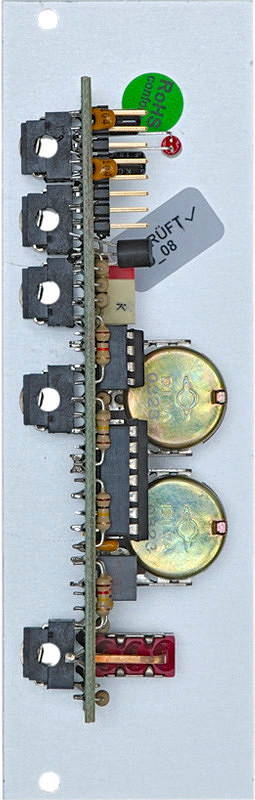

![](backs.jpg)
this module has a maximum current draw of 30ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
