doepfer a-129-5 voiced/unvoiced detector (vocoder subsytem)
price : $99.00
|

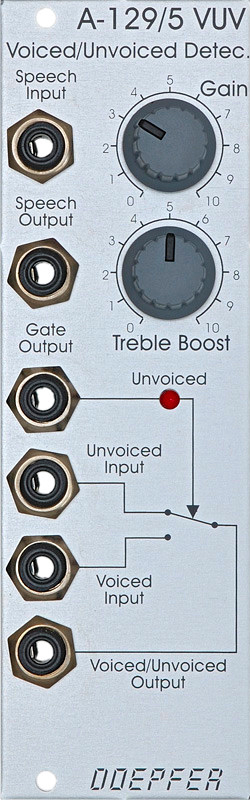

![](a129-5s.jpg)
|
the voiced / unvoiced detector (a-129-5) can recognise voiced and unvoiced sections in the
speech signal, and switch the carrier signal accordingly. the incoming speech signal is processed through a pre-amplifier with adjustable
gain and a treble boost unit. the treble boost improves the vocoder effect.

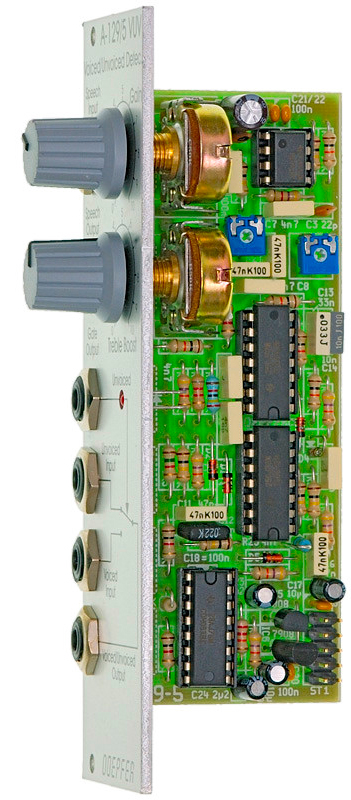

![](sides.jpg)
the voiced/unvoiced recognition system controls a voltage
controlled switch (like a-150) which is used to switch between the voiced and unvoiced carrier signal (e.g. vco and
noise). additionally the voiced/unvoiced information is available a a gate signal. a led displays the unvoiced state.

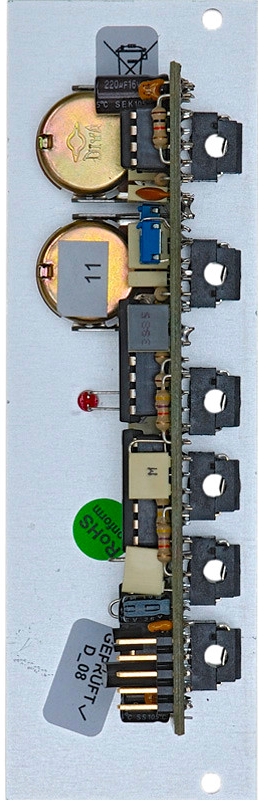

![](backs.jpg)
this module has a maximum current draw of 30ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
