doepfer

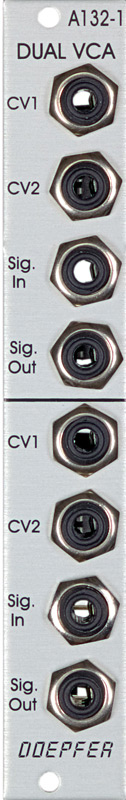

a-132 dual voltage controlled amplifier
price : $80.00
| ![A-132 Dual Voltage Controlled Amplifier A-132 Dual Voltage Controlled Amplifier](a132s.jpg) |
module a-132 (dual low cost vca) contains two voltage controlled amplifiers, with a linear response most suited to regulating the level of control voltages (adsr amount, level of vibrato effect, etc.).
![](sides.jpg)
in non-critical situations, though, its vcas can be used to control audio signals.
amplification is governed by the sum of the voltages patched into the two cv inputs.
![](backs.jpg)
this module has a maximum current draw of 20ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
