doepfer
 a-138b mixer: potentiometers with logarithmic response

price : $80.00

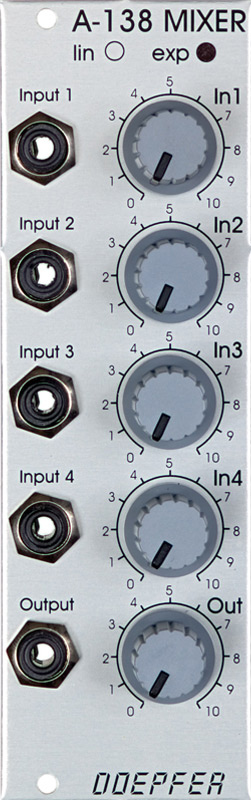

 A-138B Mixer: Potentiometers With Logarithmic Response

a-138b mixer: potentiometers with logarithmic response (vintage edition)

price : $80.00



 A-138B Mixer: Vintage Edition

module a-138 is a four channel mixer, which can be used with either control voltages or audio signals. each of the four inputs has an attenuator, and there's a master attenuator, so that the mixer can be used at the end of the audio chain - ie. it can be used to interface directly with an external mixer, amplifier, etc.

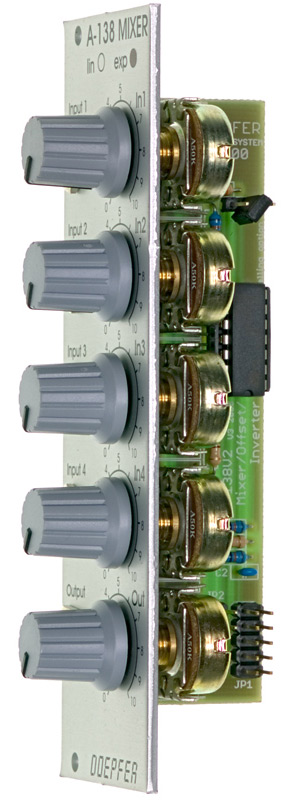

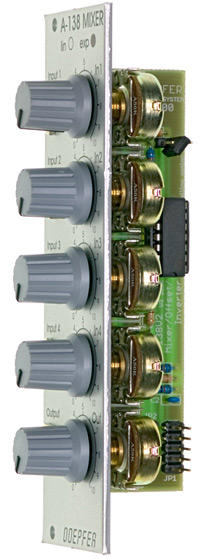

Doepfer A-138B Mixer: Side View

a-138b: potentiometers with logarithmic response, so especially suitable for audio signal mixing.

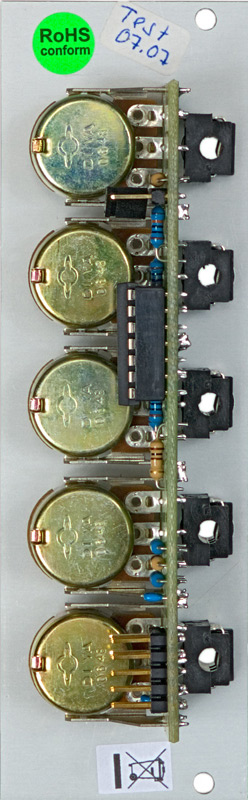

Doepfer A-138B Mixer: Rear View

this module has a maximum current draw of 20ma. it requires 8 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
