doepfer
a-138n narrow mixer
price : $62.00
|

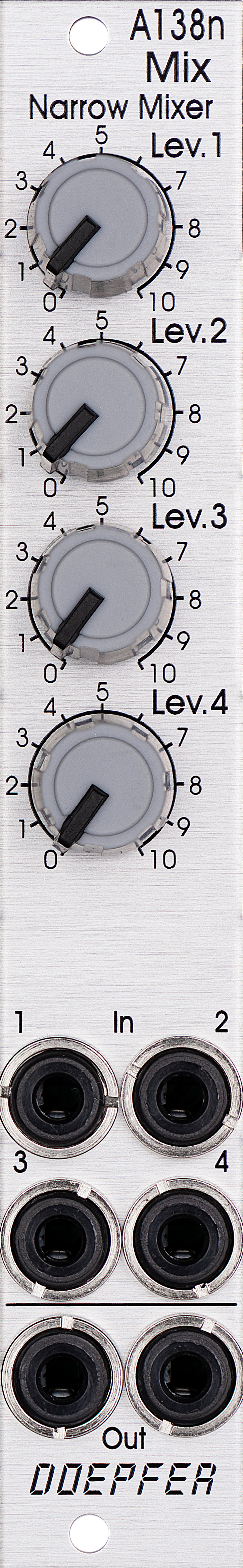

![A-138N Narrow Mixer A-138N Narrow Mixer](a-138ns.jpg)
|
module a-138n is a simple four channel mixer, which can be used with either control voltages or audio signals. each of the four inputs has an attenuator with a linear response curve available. the amplification
range is 0....1.the output is twice available (two sockets, hard-wired like a multiple).
the module is the slim version of module a-138a and offers nearly the same features. but the distances between the controls are smaller and rubberized small-sized knobs are used. in return the front panel has 4
hp only which is half the width of the a-138a. the module is primarily planned for applications where only limited space is available. the main functional difference compared to the a-138a is the missing
attenuator for the (dual) output. and input #1 does not feature the dc offset option.
this module has a maximum current draw of 10ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
|
