doepfer a-139-2 headphone amplifier
price : $70.00

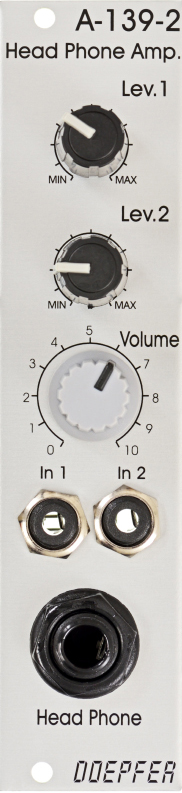

| ![](a139-2s.jpg)
|
two-channel headphone amplifier
two audio inputs with level controls
input 1 is normalled to input 2

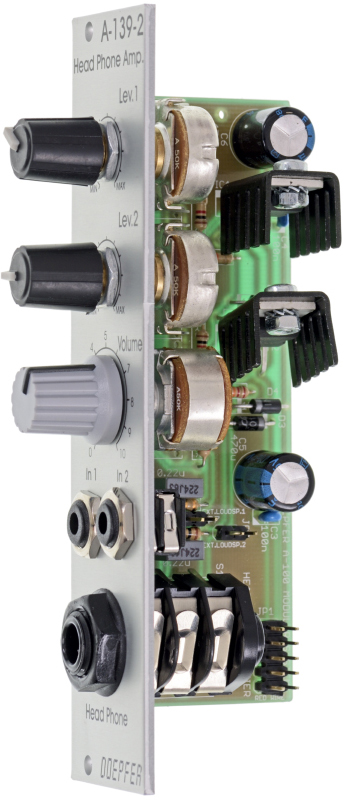

![](sides.jpg)
common loudness/master level control
headphone output (stereo 1/4" jack socket)
max. output power ~ 2 w per channel (@ 8 ohm load)
dc coupled inputs and outputs (i.e. also useful for other applications like small loudspeakers, lamps, leds, magnets, motors - provided that the power is sufficient)

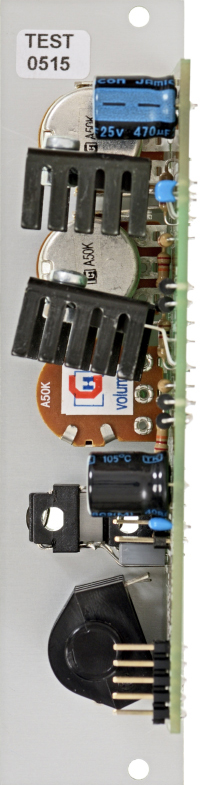

![](back.jpg)
this module has a maximum current draw of 70ma to 120ma. it requires 6 te/hp worth of space to fit in a eurorack frame.
|
