doepfer
a-141 voltage controlled envelope generator
price : $145.00
| ![](a141s.jpg)
|

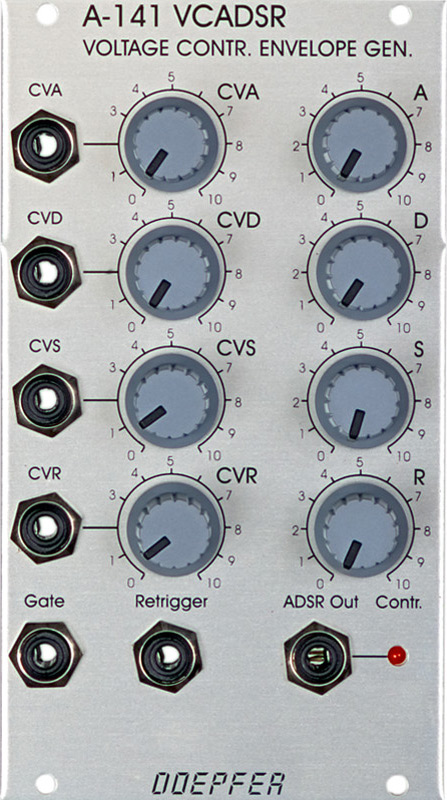

module a-141 (vcadsr) is a voltage controlled envelope generator - the voltage controlled
version of the a-140. whenever a gate signal is sensed at the vcadsr's gate input, an adjustable sequence of voltages
is triggered - the envelope. you can then use these envelopes to modulate a vco, vcf and/or vca, and alter the input and output voltages of
all sorts of modules.

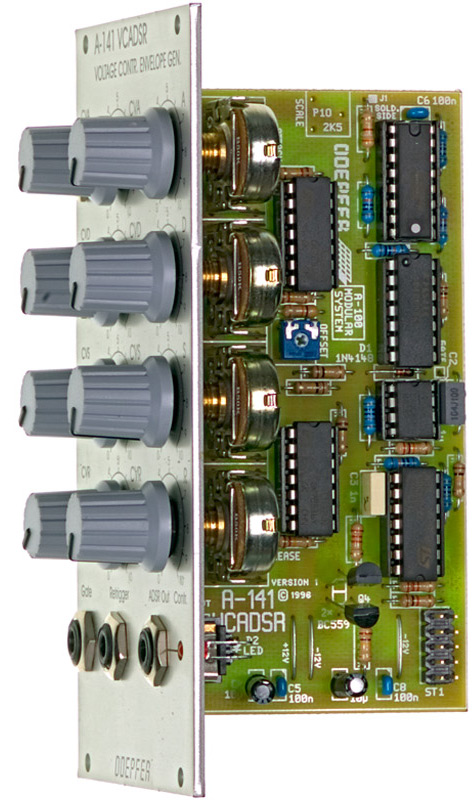

![](sides.jpg)
the shape of the envelope is governed by four parameters: attack, decay, sustain and release. on the a-141, these parameters can be
controlled by hand, or by voltage control, via the dedicated cv inputs (each with an attenuator).
the a-141 vcadsr also has a retrigger facility: while the gate is open, a trigger pulse received at the retrigger socket will re-start the
envelope from the beginning of its attack phase.

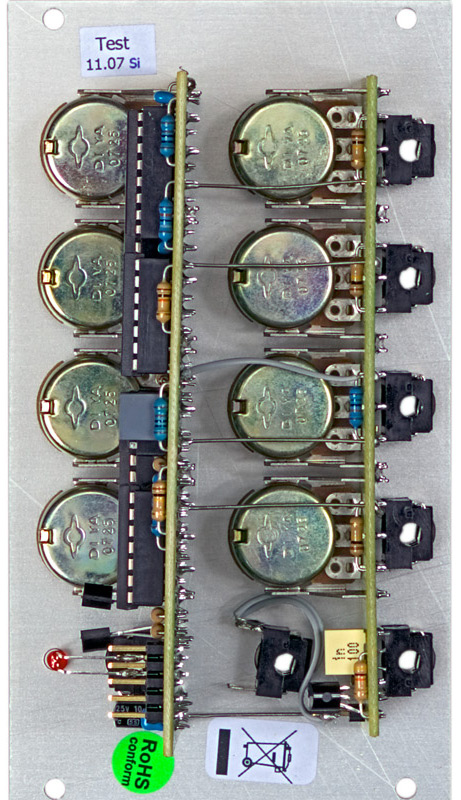

![](backs.jpg)
this module has a maximum current draw of 30ma. it requires 14 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
