doepfer

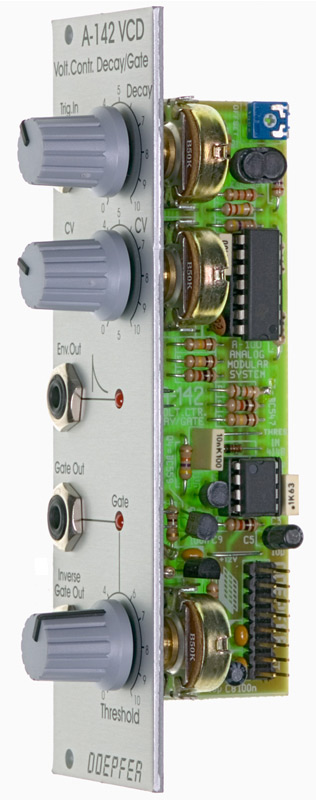

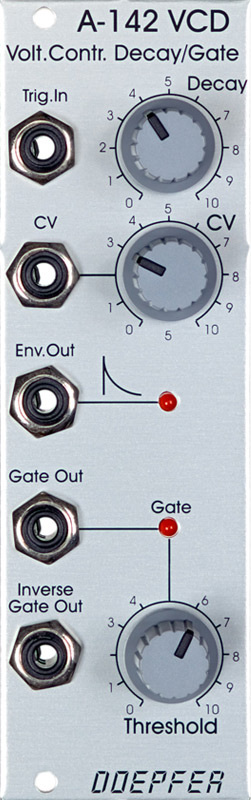

a-142 voltage controlled decay/gate

price : $99.00



module a-142 is a voltage controlled envelope generator. the only time parameter is decay (like tb303). decay may be adjustes manual and via voltage control input (with attenuator). the envelope output is displayed with led control. additionally from the envelope signal a gate signal and an inverse gate signal with adjustable threshold is derived. led control for gate output. thus one obtains a voltage controlled gate additionally or alternatively to the envelope signal with voltage controlled duration.



typical applications: dynamic control of decay e.g. in combination with the analog/trigger sequencer a-155, voltage controlled trigger delay functions (like a-162, but voltage controlled).



this module has a maximum current draw of 50ma. it requires 8 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
