doepfer
a-144 morphing controller
price : $90.00
|

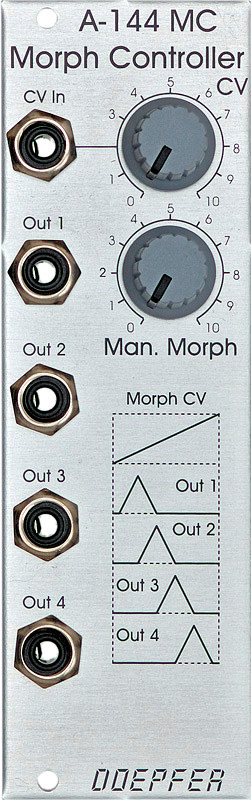

![A-144 Morphing Controller A-144 Morphing Controller](a144s.jpg) |
module a-144 is a control voltage modifier that is used in combination with the voltage controlled mixer a-135 in the first place. from a linear increasing voltage at the input the module derives four displaced triangle output voltages. when these 4 outputs are
connected to the four control voltage inputs of the a-135 one obtains a fading over of the four a-135 audio inputs ("morphing"). the morphing can be controlled manual and modulated with an external control voltage (e.g. from lfo, adsr, random, midi-to-cv,
theremin, light-to-cv, analog sequencer) with attenuator.

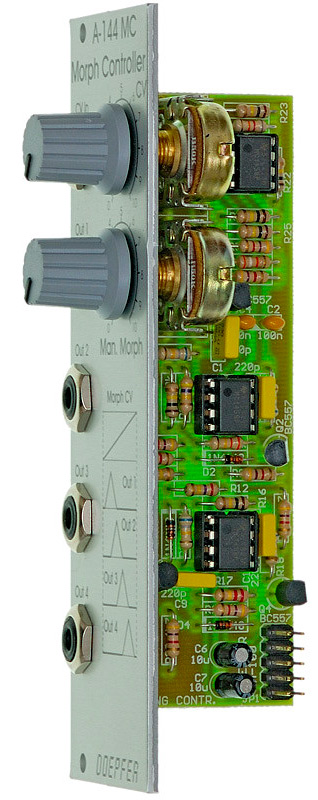

![](sides.jpg)
applications: voltage controlled morphing of 4 audio signals in combination with a-135, e.g. morphing between the 4 waveform outputs of an vca (sawtooth/ rectangle/ triangle/ sine) or the 4 filter outputs of the multimode filter a-121 (lowpass/ bandpass/
highpass/ notch) or the 4 filter outputs of the a-105 (6/12/18/24db) to obtain a filter with voltage controlled slope.
inputs: cv in
outputs: cv out 1, 2, 3, 4
controls: manual morphing, cv attenuator.

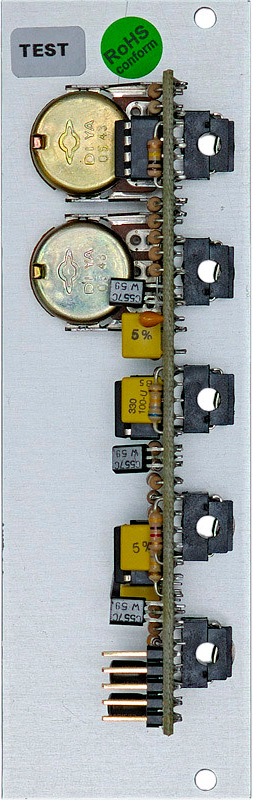

![](backs.jpg)
this module has a maximum current draw of 30ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
