doepfer
a-146 low frequency oscillator 2 / lfo 2
price : $90.00
| ![](a146s.jpg)
|

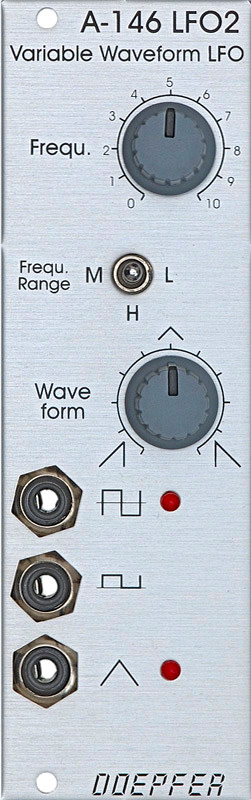

module a-146 (lfo 2) is a low frequency oscillator, which produces periodic control voltages over a wide range of frequencies.
the lfo can be used as a modulation source for a series of modules (for instance pulse width and/or frequency modulation of a vco, modulation of a vcf cut-off frequency, amplitude modulation with a
vca).
![](sides.jpg)

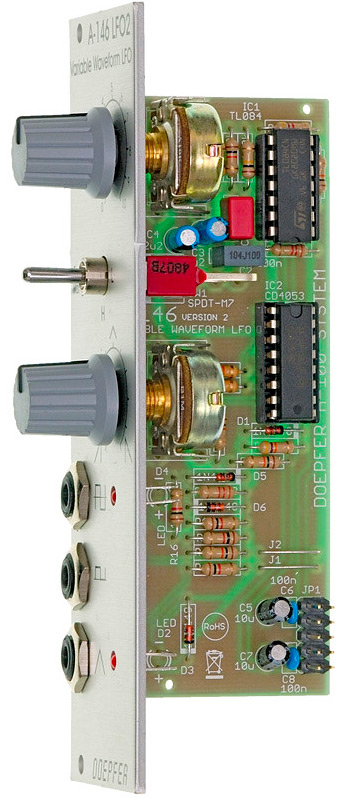

three outputs are available, with different waveforms: sawtooth / triangle; square wave, and positive-voltage square wave.
the waveform is continuously adjustable from rising sawtooth, through triangle to falling sawtooth. the same control affects the pulse width of the square wave.
a three-way switch can select one of three frequency ranges, spanning from one cycle every few minutes, at the lowest, up to audio frequency at the highest.
![](backs.jpg)

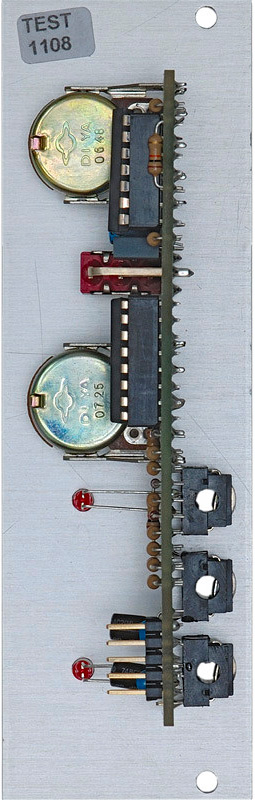

this module has a maximum current draw of 20ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
