doepfer
a-150 dual voltage controlled switch
price : $75.00
| ![A-150 Dual Voltage Controlled Switch A-150 Dual Voltage Controlled Switch](a150s.jpg)
|

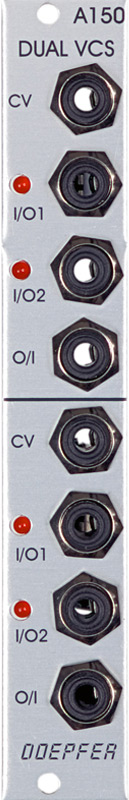

module a-150 (dual vcs) contains two separate voltage-controlled switches.
each switch has a control voltage input, a common out / input, and two in / outputs. the switches are bi-directional: they can work in both directions, so can connect one input to either of two outputs, or
either of two inputs to one output. voltages in the range -12v...+12v at the o/i resp. i/o sockets can be processed by the module.

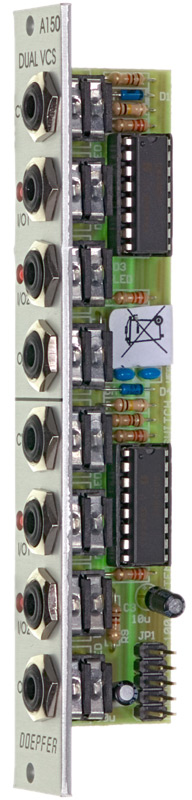

![](sides.jpg)
two leds show which in / output is active (ie. which is connected to the common out / input).
similar modules: a-152 voltage addressed track&hold / switch (multiplexer) / digital outputs.

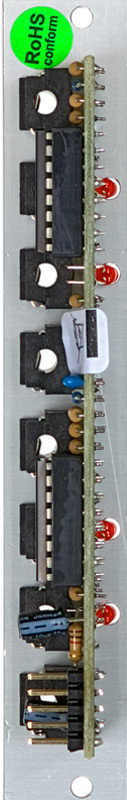

![](backs.jpg)
this module has a maximum current draw of 30ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
