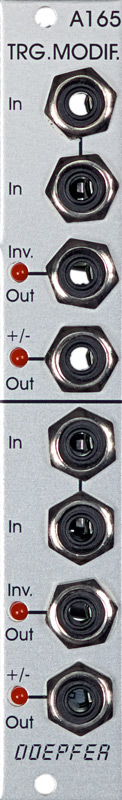

| doepfer A-165 Dual Trigger Inverter/Modifier price : $75.00
| ![](a165s.jpg)
|
module a-165 (dual trigger modifier) contains two separate trigger modifiers, to use with
logical / digital levels (gate, clock, trigger). each half of the module enables signals generated by the a-100 to communicate with other
instruments (such as an external sequencer), or is simply used where you want to reverse a trigger polarity.

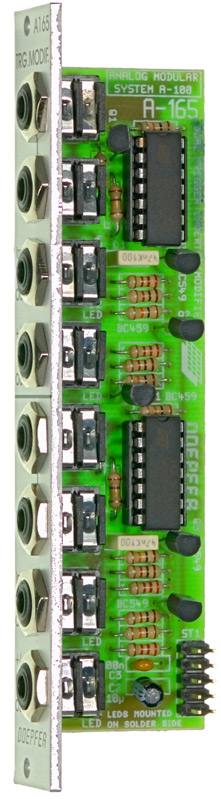

![](side.jpg)
whatever signal is patched into the input is inverted by the module, and fed out of the inv. out (inverted output) socket. at the same
time, a trigger signal of roughly 50 ms is generated every time an edge of the trigger pulse is sensed (negative as well as positive).
this trigger signal is available at the +/- output.
two leds act as indicators showing the level of signal available at the two outputs.

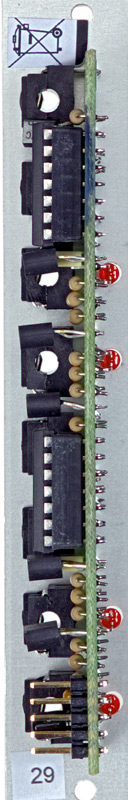

![](backs.jpg)
this module has a maximum current draw of 20ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
