doepfer a-166 dual logic module price : $130.00

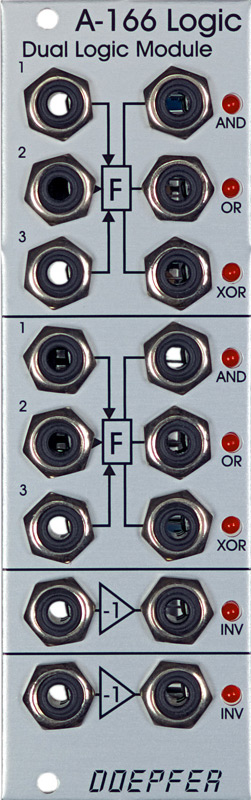

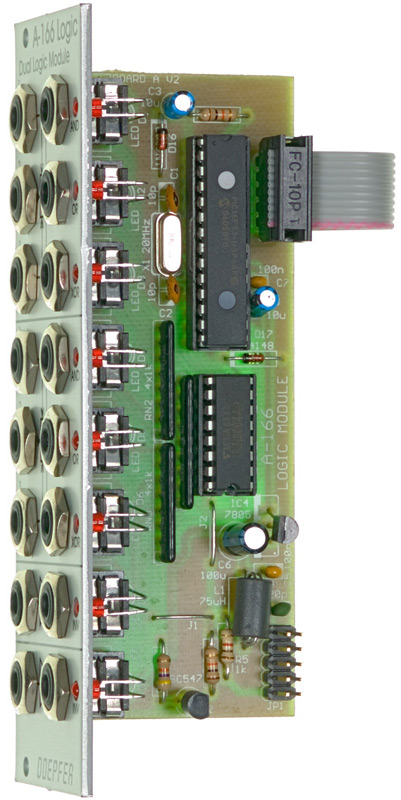

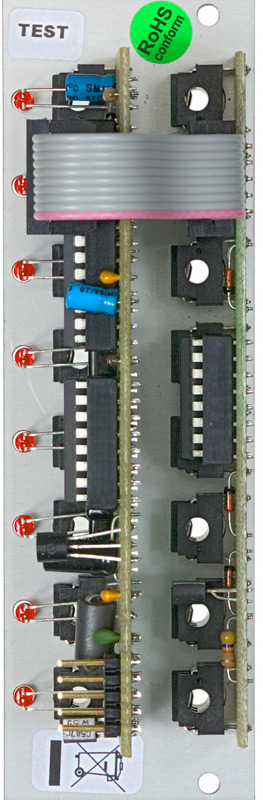

dual logic module with 3 inputs for each unit. the logical states of the inputs ("1" = high / "0" = low) are linked together in 3 ways: and, or, exor (exclusive or). the three functions are available simultaneously at three outputs with led display of the output states. additionally two inverters are avaliable to obtain the inverted functions nand, nor and nexor. the sockets of each triple unit are "normalized", i.e. the switched contact of socket 2 is connected to input 1 and the switched contact of socket 3 is connected to input 2. provided that no plug is inserted into socket 1 resp. socket 2 the socket is connected to the input above it. this simplifies the usage of the module when only 2 signals are combined. e.g. the logic functions and and or have different neutral input levels ("1" is the neutral state for and, "0" is the neutral state for or). in case of a fixed input level for the unused input one of the functions (and or or) would work no longer.



applications: combination of digital signals of the a-100 (e.g. gates, clocks, triggers), e.g. to obtain "gated" clocks or certain rhythmic patterns.



this module has a maximum current draw of 40ma. it requires 8 te/hp worth of space to fit in a eurorack frame.



to view this module's user manual as a pdf file, please click here.
