doepfer

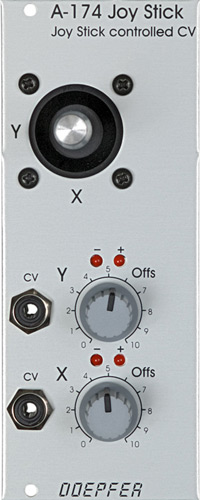

a-174 joy stick
price : $110.00
| ![A-174 Joy Stick A-174 Joy Stick](a174s.jpg)
|

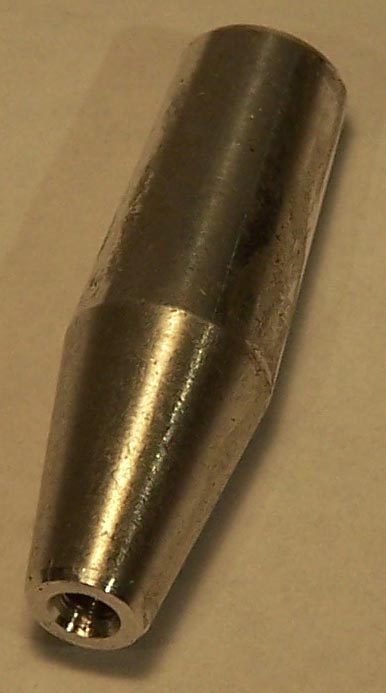

aluminum joystick handle (replacement lever for old-style joystick)
price : $15.00
| ![Aluminum Joystick Handle Repacement Aluminum Joystick Handle Repacement](aluminum_levers.jpg)
|
module a-174 outputs 2 control voltages generated by a spring-loaded x/y cross potentiometer (so-called joy stick). for each output the voltage offset (zero setting) can be adjusted. each output is equipped
with 2 leds for positive/negative display of the output voltages. if the spring is removed for one direction the joy stick is no longer spring-loaded for this direction (as the spring is destroyed when removed
this cannot be re-established!). we use a high quality joy stick made by alps in the a-174.

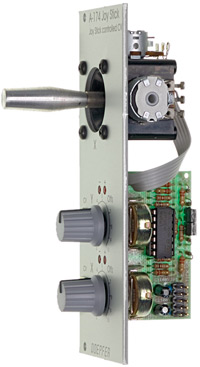

![](sides.jpg)
this module has a maximum current draw of 40ma. it requires 10 te/hp worth of space to fit in a eurorack frame.

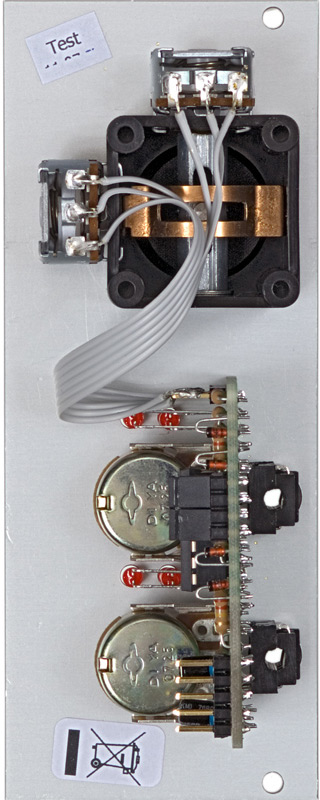

![](backs.jpg)
to view this module's user manual as a pdf file, please click here.
|
