doepfer
a-176 control voltage source
price : $80.00

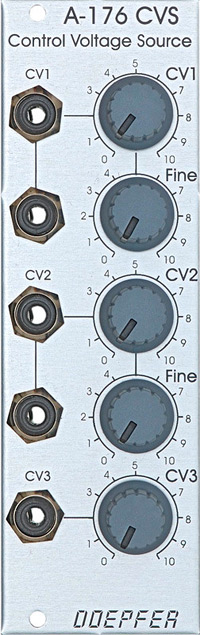

| ![A-176 Control Voltage Source A-176 Control Voltage Source](a176s.jpg) |

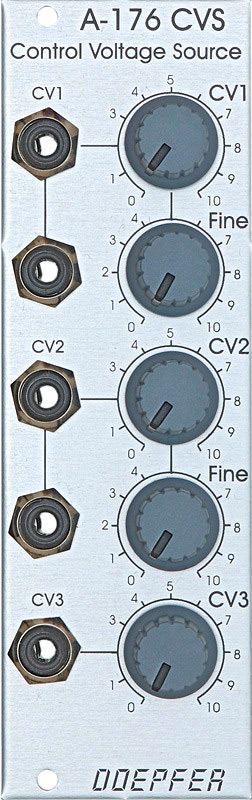

module a-176 (control voltage source) provides three voltage sources, to use wherever an extra cv is required. the top two voltage sources (cv 1 and cv 2) have
controls for coarse and fine control of the voltage output; the third source (cv 3) just has the one control.
the range of the voltages output can be preset, either to 0 to +5 v or to -2.5 v to +2.5 v depending on your likely requirements. there is a jumper on the circuit board for each of the three voltage
sources.

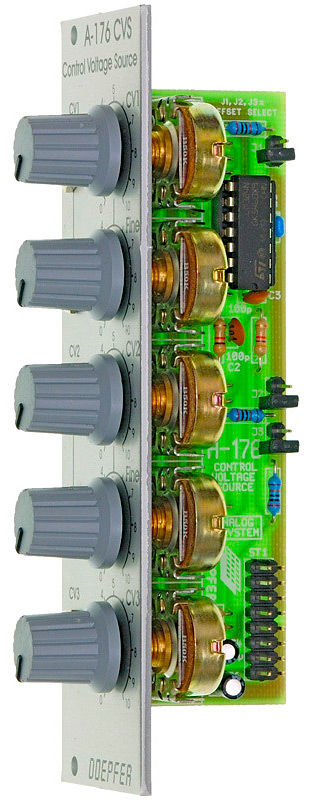

![](sides.jpg)
a typical use for the module would be to provide fine as well as coarse tuning for an a-110 standard vco, (which, unlike the a-111, only has one tune
control).
in general, this module will be useful whenever you need a manually controllable cv on a module which doesn't itself have a built-in control.

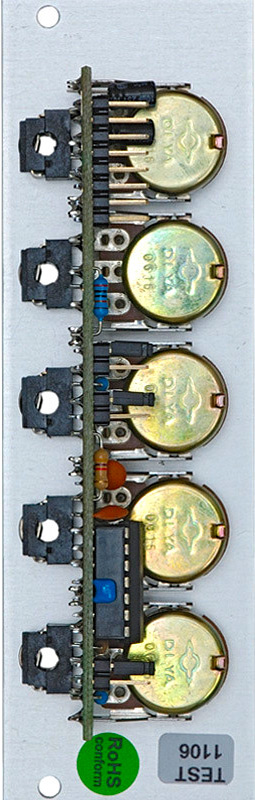

![](back.jpg)
this module has a maximum current draw of 20ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
to view this module's user manual as a pdf file, please click here.
|
